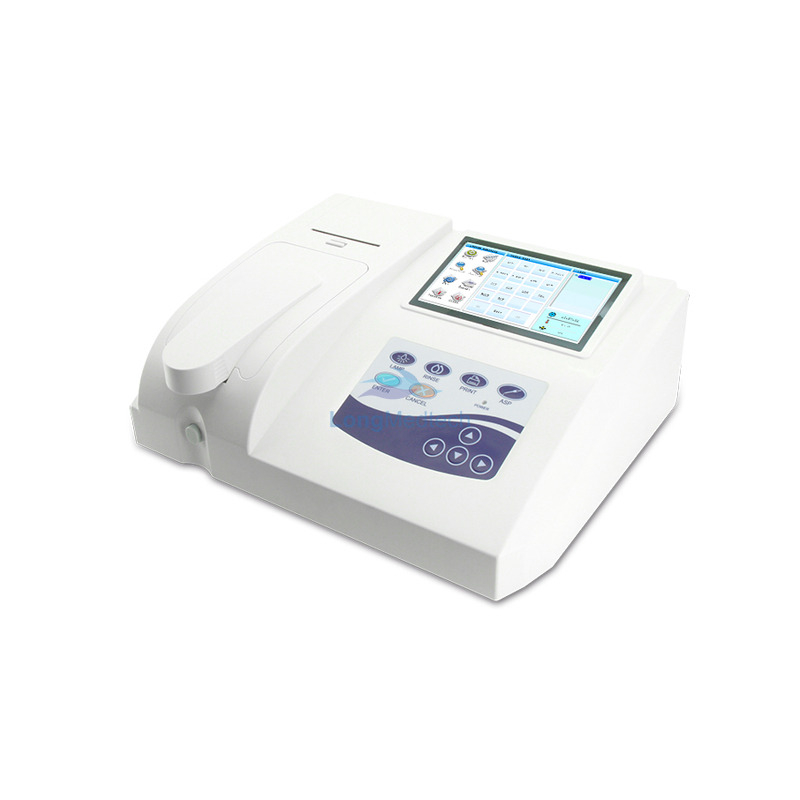

LKT76 Semi-auto Biochemistry Analyzer

Function:

• Based on Linux operating system, color graphicalinterface. Operate bytouch screen, function keys or external USB mouse, keyboard.

• Optionalmeasurement methods (End point, Two-point, kinetics, doublewavelength,etc.) and calculation methods (factor,linear regression, non-linear regression,etc.).

• Store 500 test items and 10000 test results, with multiple print modes andreports.

• Each item can be set quality control of two batch No. Automatically statis-tic and draw QC chart,store QC data and chart within one year, which canbe checked and printed.

• Auto-dormancy for the lamp to prolong its life.

• Power-off protection function: automatically save measurement results.

• Self-check function: alarm for light path,liquid path and mechanical components failure.

• Standard communication interface, convenient for data transmission and processing.

• Support Chinese,English,Spanish,Portuguese four languages.

Physical characteristic:

Dimension:410mm(L)x340mm(W)x150(H)mm

Weight: 6 Kg

Working environment:

Temperature:10C~30C

Relative humidity:80%

Atmospheric pressure: 860hPa~1060hPa

Transportation and storage:

Temperature:-40C~55C

Relative humidity:95%

Atmospheric pressure: 860hPa~1060hPa

Performance

-Absorbency range: -0.3-3.0Abs

-Resolution: 0.001Abs(display), 0.0001 Abs(internal calculation)

-Light source: Halogen lamp

-Wavelength:340,405, 510, 546, 578, 620nm +2 free positions

-Stability:0.005A/30min

-Half-bandwidth:12 nm

-Temperature control: room temperature, 25C, 30C,37C

-Temperature accuracy:0.1C

-Colorimetric cell: 30pl quartz flow cell

-Sample volume: 0~6000pl

-Cross contamination:1.0%

-Storage: 500 test items, 10000 test results

-Interface: standard RS232 interface, 4 USB interfaces, Ethernet in-terface

-Display:7"color LCD(1024*600)-Print: built-in thermal printer or connect external printer- Processor: embedded high-speed processor- Power supply: 100VAC~240VAC, 50/60Hz

Accessories

-A recording paper-Two fuses-Apower cord

- Ahalogen lamp

-Apipette

- Apump pipe
