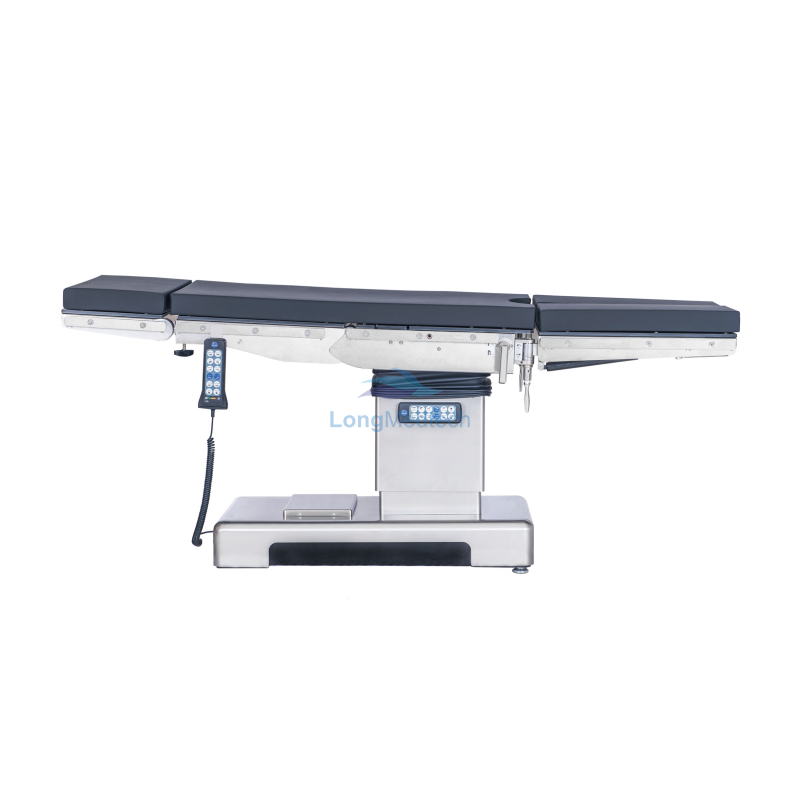

LOL135 Electric operation table (electric hydraulic)

FEATURES

1.Imported hydraulic engine

2.Impoted electromagnetic valve

3.Imported sealing ring

4.leg board are separated & dischargeable

5.waist can be lifted

TECHNICAL SPECIFICATION

Length: 2000±100mm, Width: 520±20mm

Height Adjustment: （700-1000）±50mm

Tilt Left:≥15°  Tilt Right: ≥15°

Trendelenburg: ≥20°   Rev-Trend:≥15°

Headboard Upwards: ≥45°  Headboard Downwards: ≥90°

Backboard Upwards: ≥70°  Backboard Downwards: ≥20°

Lumbar Upper Corner/Lumbar Lower Corner: ≤160°/≤105°

Leg board upwards: ≥10°  Leg board downwards: ≥90°

Leg board split: ≥180°(detachable)

Waist board lifting: 100±20mm

Input Power: 500±10％VA

Power Supply: AC 220V±22V  50Hz±1Hz
