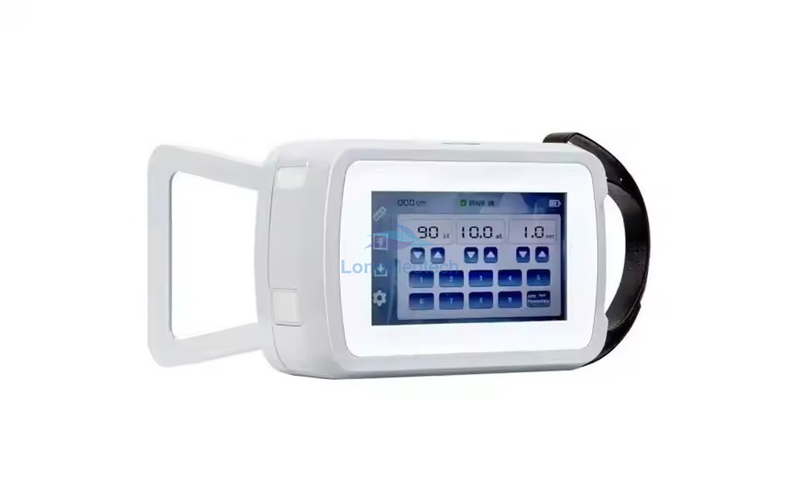

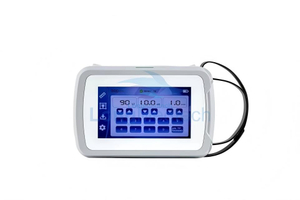

The LPXM-450 redefines mobility in medical imaging. As a true handheld X-ray machine, it eliminates the need for fixed
installations and complex setups, enabling imaging wherever the patient is-whether in a remote clinic, at an accident site, or in a veterinary practice. Its ergonomic design and light weight (only 3.5 kg) make it easy to carry and operate by a single
technician.
Equipped with a 450W power system, it offers adjustable kV (40–90 kV) and mA (0.5–5 mA) settings, along with exposure times from 0.1 to 2 seconds, providing flexibility for imaging different body parts and patient sizes. The machine features a small focal spot size of 0.8 for enhanced image clarity and includes a built-in battery for cord-free operation. Safety is ensured with a total filtration of 1.8mm Al, minimizing radiation exposure.
Key Features:
Ultra-Portable: Weighs only 3.5 kg, truly handheld and easy to transport.
Battery-Powered: No need for external power sources, ideal for field use.
Wide Application: Suitable for human and veterinary use across multiple body parts.
Low Radiation: Designed with patient and operator safety in mind.
Optional Image Processing: Can be paired with digital imaging systems for enhanced diagnostics.
