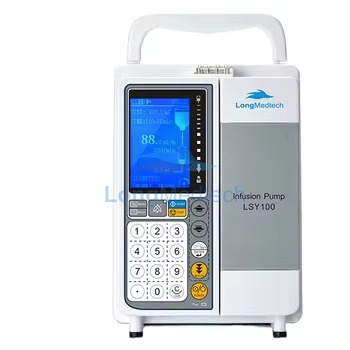

LSY100 Infusion Pump

Item

Infusion Mode

IVSets

Flow Rate RangeFlow Rate Increment

Flow Rate Deviation

VTBI

infused VolumeTime SettingPurge Rate

KVo

KeypadBOLUS Mode

Night Mode

Detection

Occlusion Pressure

Air-in-line DetectionAlarm &Volume

Anti-reverse FunctionIV Set Management

Self-Testing

Alarms

Audio and Visual

Display

AC Power

Battery

Operation

Iransportation and StorageClassificationDimension

Weight

Technical Parameter

ml/hr,Volume/Time, Bolus & Drug Library Mode

Standard single use IV sets (20 and 60d/mL, with diameter 3.4 ~ 4.5mm)

1.0ml/h- 1200ml/h

1.0-100ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h

≤ +5% (after calibration)

0.1~9999ml0~9999 ml

Imin to 99h59min

60omi/h, displaying purge volume

1ml/h-5ml/h, adjustable

Numeric Keypad, user friendly

Available for Bolus mode, flow rate adjustable.

Night Mode, No operation for 5mins, LCD brightness lower automatically.

Upstream and downstream pressure detection with 10 settings, 40 - 140KPa dynamically

display pressure value.

Air bubble detected by ultrasonic with 10 settings, 50 ~300 u L.

10 settings

Anti-reverse function on motor to prevent upstream

Open System. Can accept all kinds of IV Set after calibration

Self-Testing when start up and during infusing

Air-in-line, Door open, Upstream occlusion, Downstream occlusion,Parameter error, IV Setnot calibrated, Infusion finished, No operation, Leakage, Bottom empty, Battery low, Pumperror, Motor reverse, AC power lost, etc.

3.5' Brightness LCDAC:100V ~240V,50Hz/60Hz, ≤ 25VAbattery displayed.

Rechargeable Lithium battery: DC11.1V, 3000mAh, life: > 10 hours remaining

Class I,CF,IPX3

Temperature:5° C-40° C,Relative humidity:20% - 90% ,Atmospheric pressure:70-106KPa

Temperature:-20° C-55° C,Relative humidity:10% - 90% ,Atmospheric pressure:70-106KPa

150mmx 10mmx210mm;

1.7kg
