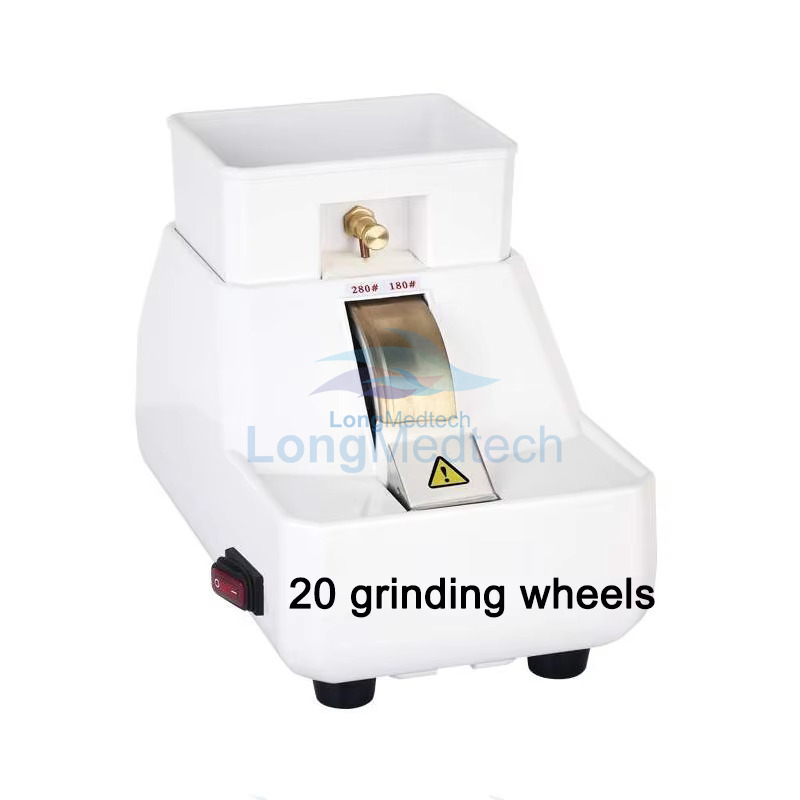

LY-5E
Summary:
For an glasses shop in glass and plastic lens edging, trimming, polishing.
Detailed Product Description:
1.DC motor, big power, high speed rotating grinding wheel, fast grinding, facilitate water drainage.
2.Single 20mm of grinding wheel.
3.Single-wheel holder and double-wheel holder which can be choosed.
Parameter:
Grinding wheel size: 100x20x14mm, rough grinding: 180#
Electric Voltage: 220V/50Hz or 110V/60Hz
Power: 120W
Weight: 7.8kg
Volume: 41 (L) x 27 (w) x 28.5 (H) cm
Contact us for more product information!
Specifications:
| Technical Data | LY-5A/B | LY-5E | LY-150 | LY-5D-35WV | LY-316 | LY-316B |
| Packing Dimension | 41x27x30cm | 35x23x23cm | 34x49x36cm | 42x29x32cm | 39x26x31cm | 39x26x31cm |
| G.W. | 7.4kg | 4.6kg | 9.4kg | 7.1kg | 7kg | 7kg |
| Packing Quantity | 4pcs/ctn | 4pcs/ctn | 2pcs/ctn | 2pcs/ctn | 2pcs/ctn | 2pcs/ctn |
| Carton Size | 56x44x62cm | 48x38x49cm | 51x70x39cm | 59x47x35cm | 54x42x34cm | 54x42x34cm |
| Approx G.W. | 31kg | 19.4kg | 20.7kg | 16.2kg | 15kg | 15kg |
| Technical Parameters | 20 | 30 |
| Width | 20mm, normal rough grinding | 30mm, large rough grinding |
| Graduations | 200#(default), 240#,280#(optional) | 200#(default), 180#,240#, 280#(optional) |
| Parameters | 35W | 35WV |
| Width | 35mm, right rough grinding 16mm, left fine grinding 19mm | 35mm.right rough grinding 16mm,left fine grinding 19mm,trimming. |
| Graduations | Rough grinding: 180# , fine grinding 280#(default), 320#(optional) | Rough grinding: 180#, fine grinding 280#(default), 240# 320#(optional) |
