LYW Series Double Beam UV-Vis Spectrophotometer

LYW Series Double Beam UV-Vis Spectrophotometer

Your Reliable Lab Analysis Partner ## Introduction In modern analytical labs across pharmaceuticals, biotech, environmental testing and chemical research, high-precision UV-Vis spectrophotometers have become indispensable core equipment.

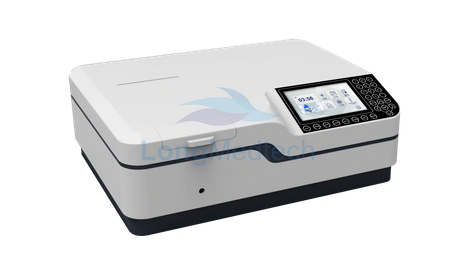

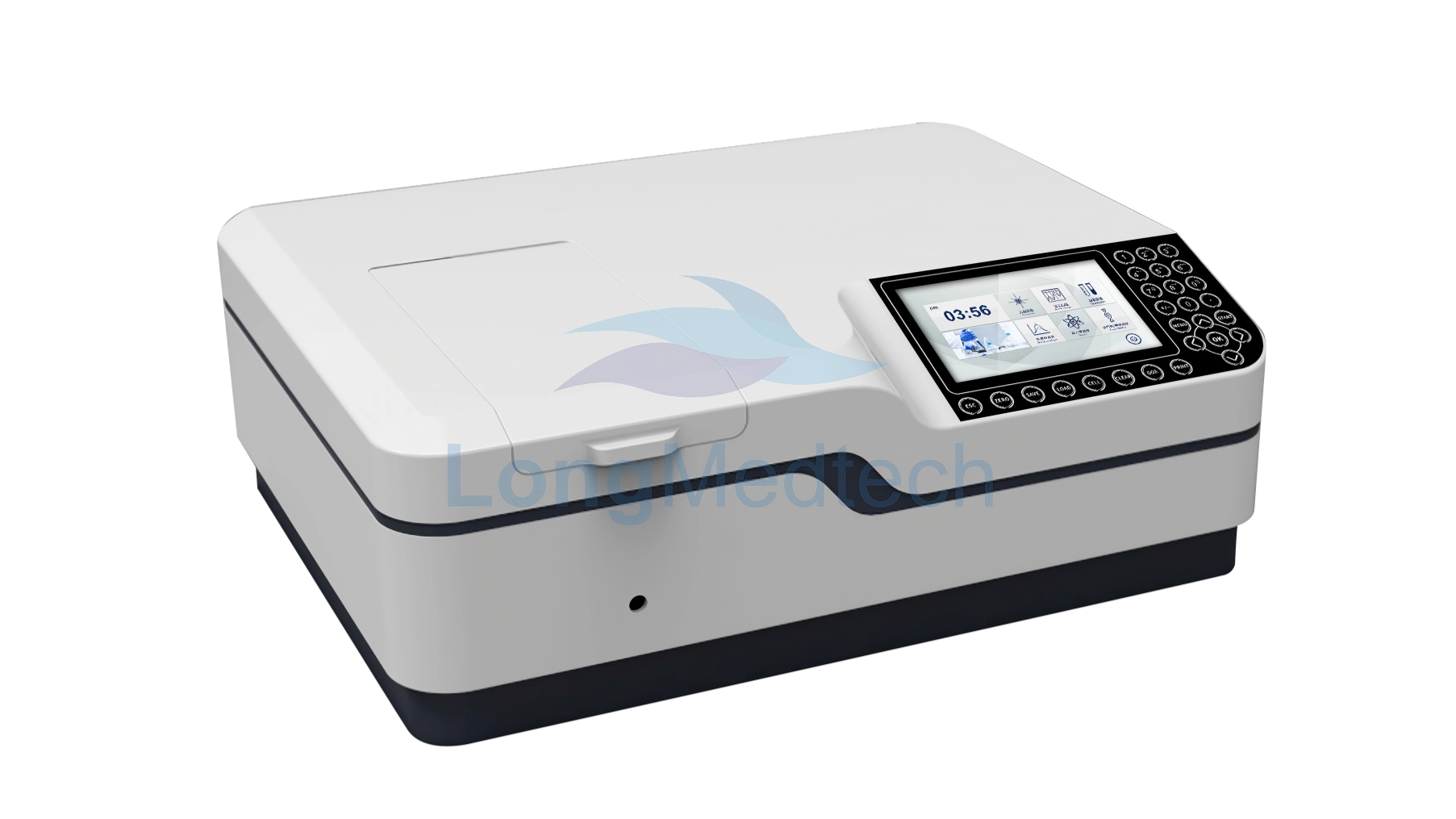

Today we’re introducing the LYW-100 / LYW-110 / LYW-111 Color Screen Double Beam 2nm Spectrophotometer, a cost-effective, high-performance analytical instrument developed by Nanjing Long Medical Technology Co., Ltd. Built with professional double-beam optical architecture and user-centered design, this series balances ultra-high measurement accuracy, rich testing functions and easy operation. It perfectly fits routine quality control, academic research and regulatory-compliant lab testing scenarios.

## Core Advantages & Key Features

### 1. Intuitive 7-inch TFT Color Graphic Interface Equipped with a large 7-inch TFT color screen and Windows-style graphical operation system, the device delivers clear visualization and straightforward menu navigation. Operators can quickly finish parameter setup, spectrum viewing and data query without complicated training.

### 2. Comprehensive Testing Functions It covers all mainstream lab spectroscopic measurement demands: - Photometric measurement - Quantitative concentration testing - Kinetics reaction monitoring - Full-spectrum scanning - DNA & protein concentration detection - Multi-wavelength simultaneous analysis Built-in large-capacity storage supports up to 1024M space to save test data and standard working curves, avoiding repeated calibration for frequent samples.

### 3. Convenient Data Export & Connectivity Standard USB storage interface enables one-click data export to Excel for offline sorting, analysis and permanent archiving. Additional RS232 communication port supports stable connection with external PCs, realizing seamless laboratory digital management.

### 4. Easy Maintenance & Replaceable Light Sources Adopts socket-type deuterium lamp and tungsten lamp. Users can swap light sources directly without complicated optical debugging, greatly lowering daily maintenance time and technical barriers. Imported light sources and silicon photodiode detectors guarantee long-term stable optical performance.

### 5. Ultra-Large Sample Chamber & Expandable Accessories The spacious sample chamber accommodates cuvettes ranging from 5mm to 100mm, compatible with most standard sample containers.

Multiple optional accessories are available to expand application scenarios:

- Auto 8-cell holder for high-throughput testing

- Film holder for solid film sample analysis

- Peltier temperature control & sipper system for liquid flow measurement

- 21 CFR compliant software for pharmaceutical regulated labs

- Built-in thermal printer for instant report output

## Professional Technical Specifications This instrument adopts a classic double-beam optical system with a 1200 lines/mm grating, delivering outstanding optical performance:

- Wavelength range: 190–1100 nm (covers full UV & visible spectrum)

- Spectral bandwidth: 2 nm

- Wavelength accuracy: ±0.1 nm @ 656.1 nm, ±0.3 nm full range

- Ultra-low stray light ≤0.03%T (@220 nm, 360 nm) for accurate low-concentration detection

- Excellent photometric stability: ±0.0003A/h @500 nm, ideal for long-time kinetics tests

- Wide photometric range: 0–200%T,

-0.3~3A, 0–9999 concentration unit Four work modes (T/A/C/E) and adjustable scanning speeds (High/Medium/Low, max 3000nm/min) adapt to fast screening and high-precision fine scanning separately.

## Standard Configuration List Every complete set includes standard consumables to support immediate lab use after delivery:

10mm glass cuvette ×4

2. 10mm quartz cuvette ×2

3. Power cord

4. User operation manual

5. Supporting PC analysis software

## Wide Application Scenarios

1. **Biotechnology & Life Science** DNA/protein quantification, enzyme kinetics research, biomolecule purity identification for university labs and biotech enterprises. 2. **Pharmaceutical QC & R&D** Active pharmaceutical ingredient (API) content testing, impurity analysis, dissolution test and stability study, compatible with 21 CFR compliance requirements.

3. **Environmental Monitoring** Water pollutant detection, nitrogen & phosphorus testing, heavy metal and organic contaminant analysis for water plants and environmental bureaus.

4. **Food & Chemical Industry** Raw material inspection, additive quantification, color and purity control of food, cosmetics and fine chemicals.

## Product Basic Info

- Power supply: AC 220V/50Hz or AC 110V/60Hz - Shipping dimension: 810×660×390 mm - Gross weight: 27 kg

 ## Final Words Whether you run a small testing lab, university research center or large pharmaceutical factory, the LYW series double beam spectrophotometer offers stable precision, flexible expandability and user-friendly operation at competitive cost. If you are looking for a trustworthy UV-Vis analysis instrument, welcome to contact us for detailed quotations and technical consultation.
