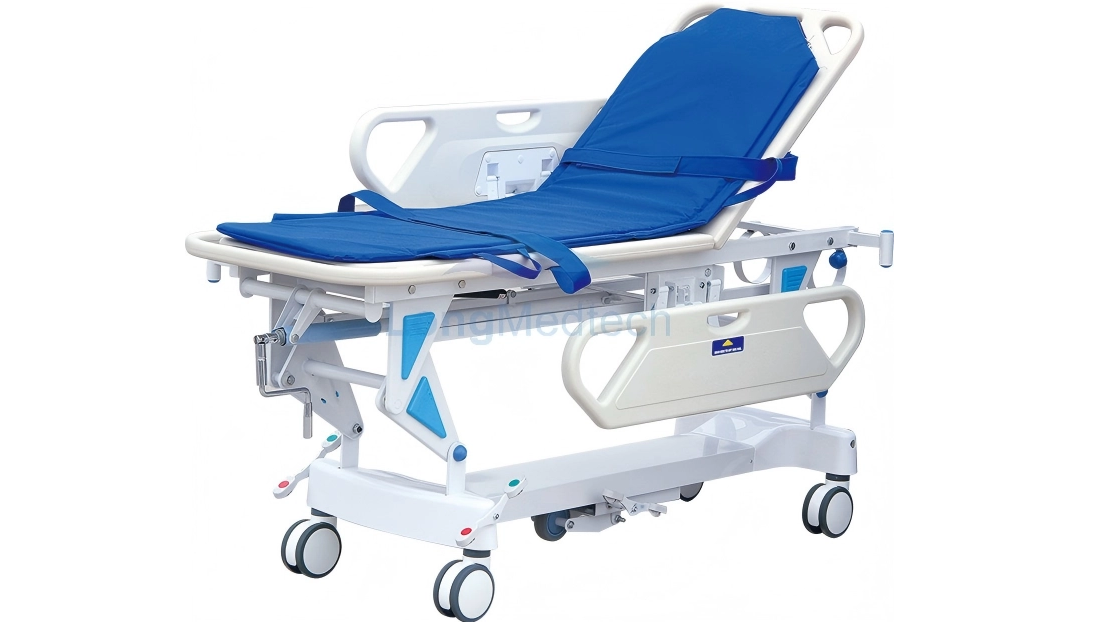

Medical Transfer Stretcher

Product Specifications

1. Overall Dimension: 1930*640*580/880mm

2. Frame Material: The flat bed frame is welded with high-quality carbon steel. After surface rust removal treatment, it adopts electrostatic resin powder spraying for anti-corrosion and durable use.

3. Bed Surface: Integral blow-molded ABS engineering plastic bed surface with excellent flame retardancy, corrosion resistance and high toughness. Four built-in handles are designed at four corners for convenient operation by nursing and emergency staff.

4. Bed Size & Backrest Adjustment: The total length of the stretcher is 1930mm and the bed width is 640mm, which fits most human body heights. The backrest tilts adjustable from 0° to 75° to meet patients' different comfort demands.

5. Side Rails: Lift-up ABS height-adjustable side rails with gas spring buffer design when lowering. It effectively improves using comfort and prolongs the service life of guardrails.

6. Back Lifting Function: Split-type bed surface design. The back section is lifted by gas spring, with an adjustable lifting range of 0-70°±5°. It supports one-handed easy operation with simple control.

7. Overall Height Adjustment: Manual crank lifting system, adjustable height range: 580mm-880mm. The crank is equipped with bidirectional interference protection and automatic lubrication function for long-term stable operation.

8. Emergency Accessories Configuration: Equipped with an oxygen cylinder bracket at the head, suitable for placing 5L oxygen cylinder for emergency rescue. Diagonal transfusion stand sockets are reserved at both head and tail of the stretcher, matched with stainless steel telescopic IV stands to facilitate patient infusion treatment.

9. Brake & Caster System: Adopts international advanced central control braking system with stable and reliable performance. Equipped with 150mm central control brake casters with foot pedal braking. Fitted with central steering wheel device, allowing single-person effortless pushing and flexible movement.

10. Mattress & Safety Design: Comes with 2cm thick oxford fabric mattress and 2 safety fixing belts, which can prevent patients from falling off during emergency transportation.

11. Packaging: Full wooden case packaging. Packaging dimension: 1980*750*680mm.

12. Max Load Capacity: 250kg

13. Weight Parameter: Net Weight: 76KG; Gross Weight: 108KG
