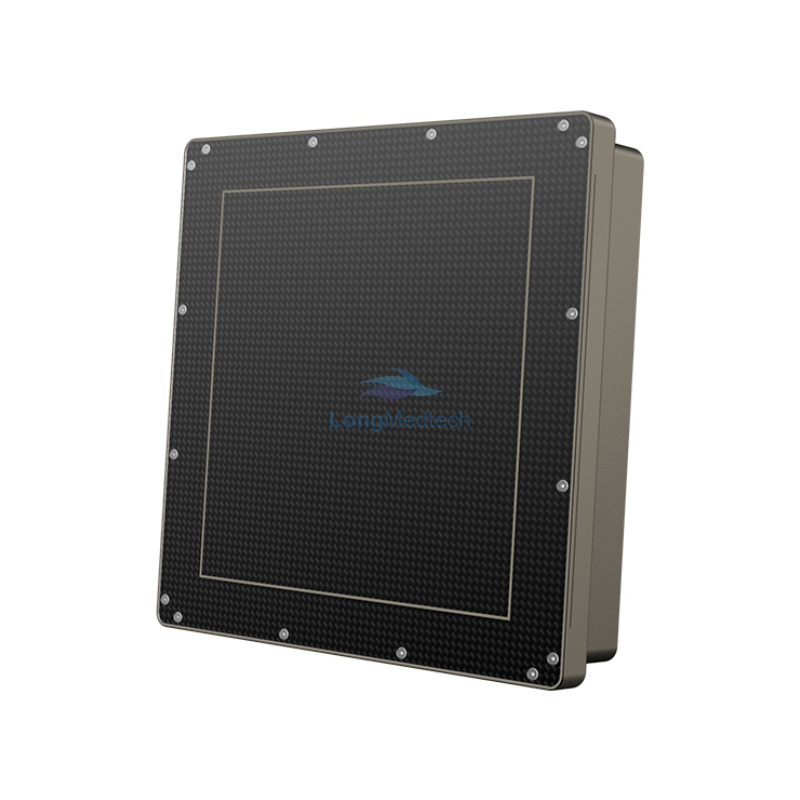

Mercu 0909F
Mercu 0909F is an a-Si FPD designed for real-time imaging. The 9×9-inch image sensor has direct deposition Csl, which provides excellent low-dose imaging at frame rates up to 60 fps, less than 3% first frame lag. When integrated into a fixed or mobile C-arm fluoroscopic X-ray system, it is ideal for surgical applications.
Features
a-Si sensor with direct deposition CsI
9×9-inch imaging area with a 205 µm pixel pitch
Distortion-free imaging with high SNR
Switchable gain settings for variable sensitivity
30 fps in full resolution and 60 fps in 2×2
| Mercu 0909F | |||
| Detector Technology | Amorphous Silicon | Data Interface | GigE |
| Scintillator | CsI | Operating Temperature (℃) | 10~35 |
| Active Area (inch) | 9 × 9 | Operating Humidity (% RH) | 20~90 (Non-Condensing) |
| Pixel Matrix | 1024 × 1024 | Storage & Transport Temperature with Package (℃) | -10~55 |
| Pixel Pitch (μm) | 205 | Storage & Transport Humidity with Package (% RH) | 10~90 (Non-Condensing) |
| Spatial Resolution (lp/mm) | 2.5 | Dimension (mm) | 270 × 275 × 54 |
| AD Conversion (bit) | 16 | Weight (kg) | 5.5 |
| Frame Rate (fps) | 30 (1×1) 60 (2×2) | ||
