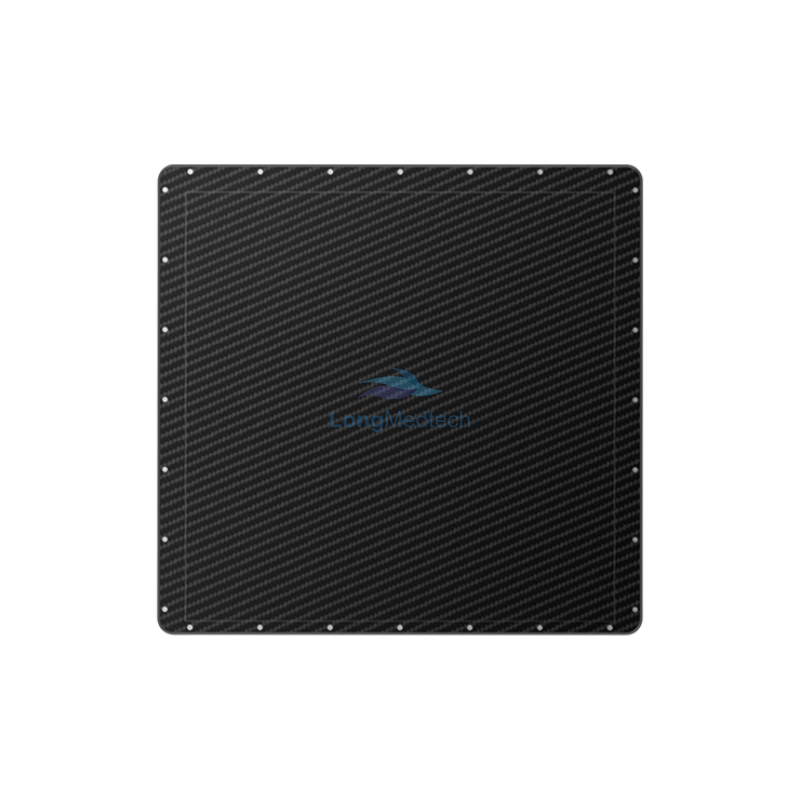

Mercu 1717HS 17×17-inch Dynamic Flat Panel Detector

        Mercu 1717HS is a new generation of high-speed real-time a-Si TFT dynamic FPD. The 17×17-inch image sensor has direct deposition Csl with a 139 μm pixel pitch, which provides excellent low-dose imaging at frame rates up to 90 fps. When integrated into a fluoroscopic X-ray system, it can be used in general radiography, fluoroscopy and CBCT for gastrointestinal, urology, orthopedics, angiography, or other similar applications.

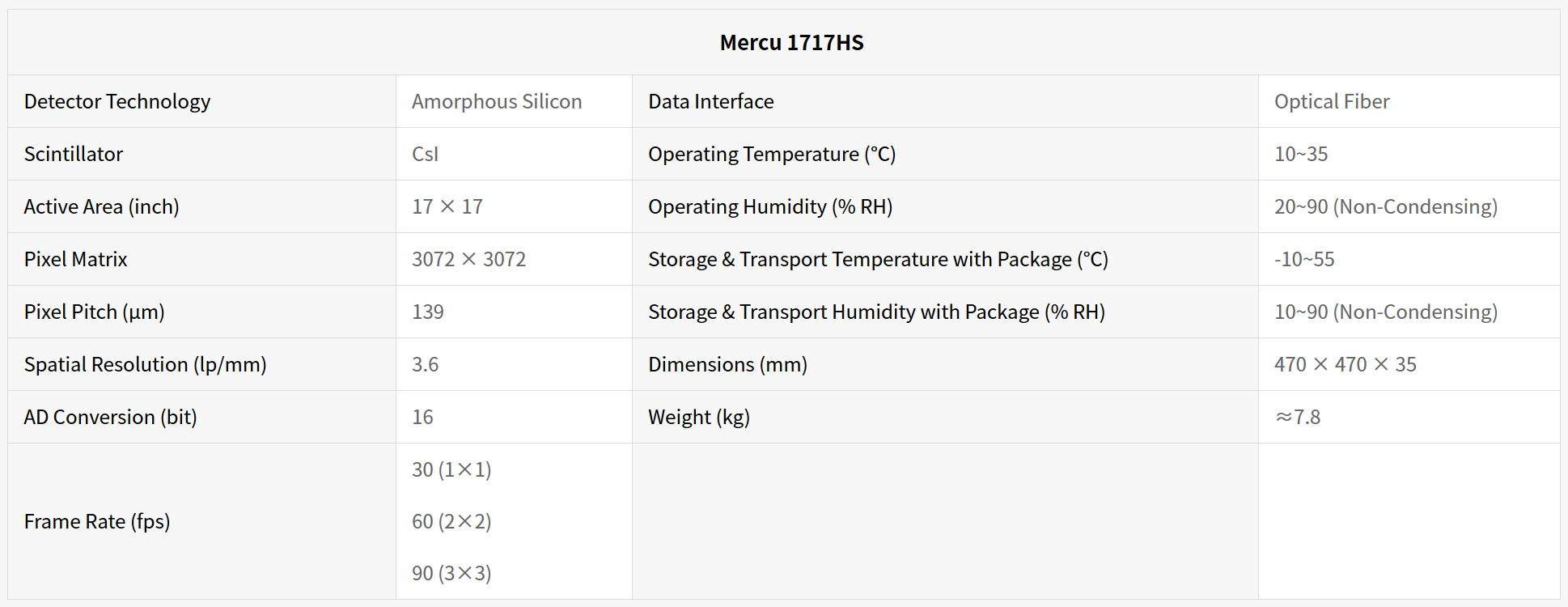

Technical Parameters
