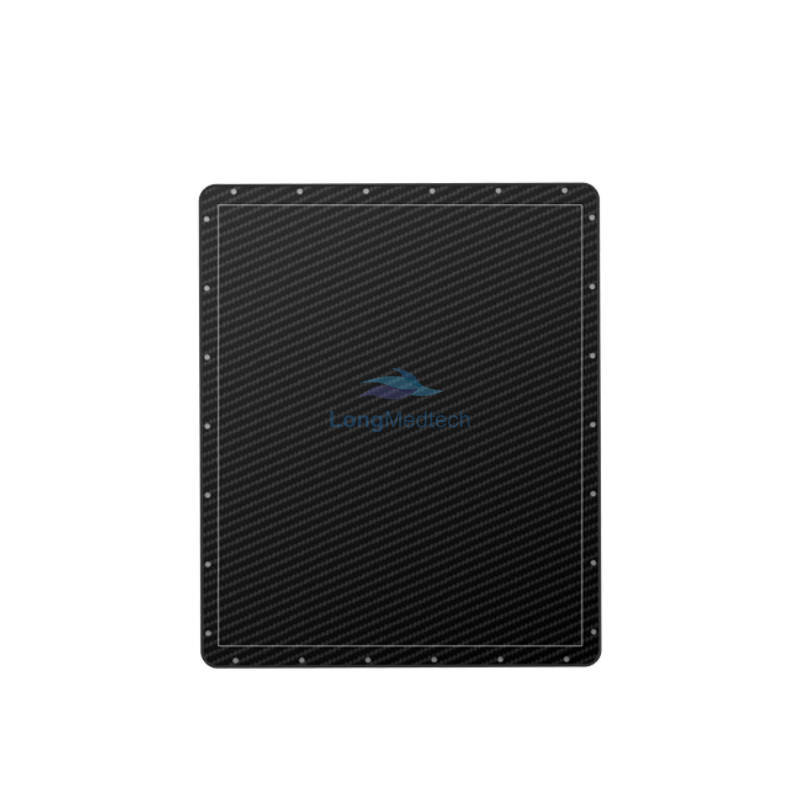

NDT 1012M
NDT 1012M is a high resolution, 100 µm pixel pitch, a-Si flat panel digital X-ray detector for dynamic imaging. It uses a fast, high-performance and radiation hard image sensor with a reliable 10G Ethernet interface. It is suitable for non-destructive testing of welding, casting, electronics, microelectronics, and electro-mechanical applications and products, as well as for industrial CT.
Features
Technical Parameters
| NDT 1012M | |||
| Detector Technology | a-Si TFT | Radiation Hardness (Gy) | 10000 |
| Scintillator | CsI / DRZ-Fine / DRZ-Plus | Ingress Protection | IP53 |
| Pixel Pitch (μm) | 100 | Dimensions (mm) | 325 × 280 × 40 |
| Pixel Matrix | 3008 × 2496 | Car Charger | No |
| Active Area (mm²) | 301 × 250 | Weight (kg) | 5 / 7 |
| Spatial Resolution (lp/mm) | 5 | Power Dissipation (W) | 30 |
| AD Conversion (bit) | 16 | Operating Temperature (℃) | 10 ~ 40 |
| Frame Rate (fps) | 10 (1×1) 20 (2×2) | Storage & Transport Temperature with Package (℃) | -10 ~ 55 |
| Data Interface | 10G Ethemet | Operating Humidity (% RH) (Non-Condensing) | 20 ~ 90 |
| Trigger Mode | Continuous and Pulsed | Storage & Transport Humidity with Package (% RH) (Non-Condensing) | 10 ~ 95 |
| X-ray Energy Range | 40kV ~ 225 / 450 kV | ||
