Portable Slit Lamp Microscope for Veterinary Use

Portable slit lamp microscope for veterinary use

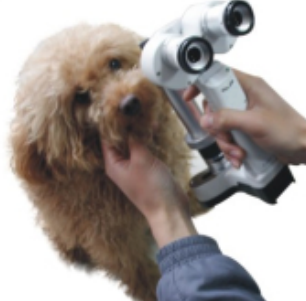

A portable slit lamp microscope for veterinary use is a compact, handheld diagnostic tool designed to examine an animal's cornea, anterior chamber, and lens during field visits or mobile clinical rounds
Key Features

Magnification: Usually ranges from 5X to 16X to provide a clear, enlarged view of ocular structures.

Adjustable Slit Beam: Features variable slit lengths (often 5mm to 11mm) and fine widths down to 0.2mm for precise optical sectioning.

LED Illumination: Employs bright, low-heat white LED lights and filters like cobalt blue for fluorescein staining.

Portability: Lightweight structures (often weighing 600g to 1.5kg) that run on rechargeable batteries.

Microscope Type：Converging microscope

· Objective Magnification： 1X

· Eyepiece Magnifications：10X、16X

· Diopter compensation：±7D

· Pupil Distance：48mm~70mm

· Working Distance：80mm

· Slit width：0~10mm continuously adjustable

· Diamater of Light Spot：10mm

· Filter：Heat-absorption、Grey、Red-free、 Cobalt Blue

· Slit Angle：Horizontal ±30°

· Light Source：White LED

· Power:7.2V 750Ah Li Battery,Rechargeable

· Working Time:5-6 hours
