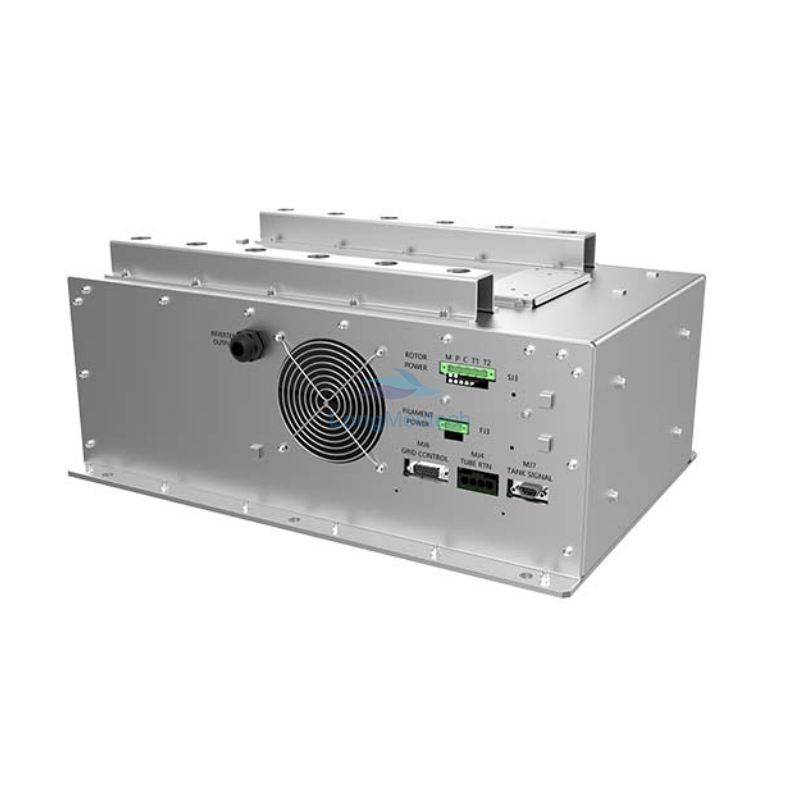

Pyxis 50CT
Pyxis 50CT is specifically designed for medical CT applications. The two-box compact structure is suitable for rotating gantry mounting, with 50kW power and high-power duty cycle characteristics for medical CT scanning requirements. The modular design provides flexible support for X and Z-directional DFS. Easily compatible with various industry bipolar CT tubes. Tube database management and filament intelligent calibration provide excellent solutions to simplify system integration and enhance application functions.
Features
Compact design, gantry rotation speed up to 120RPM
Oil tank, high heat dissipation rate and high reliability
Full digital programming starter
Filament auto-calibration
Grid and Z-deflection options
Available to drive all popular bipolar CT tubes
Modular design for flexible configurations and ease of service
Multi level ARC detection
Tube current modulation
Technical Parameters
| Pyxis 50CT | |||
| Power Requirement | Main: 3Φ, 380VAC±15%；Aux: 1Φ, 220VAC±15% | ||
| Output Performance | Nom. Power: 50kW kV Range: 60 - 140 kV mA Range: 10 – 420 mA Grid(optional): 0--3000V; 4kHz MAX Z-Dflection(opitional): 0-5A;4kHz MAX | ||
| Starter | Full digital programming | ||
| HV Tank Dimension (W x D x H) | 510mm x 390mm x 253mm | ||
| Inverter Dimension (W x D x H) | 558mm x 391mm x 300mm (With Grid and ZDFS): 550mm x 384mm x 241mm (With grid, no ZDFS) | ||
| HV Tank Weight | ≈ 43.6kg | ||
| Inverter Weight | ≈ 33kg (With ZDFS); ≈ 28.5kg (No ZDFS) | ||
| Interface | Digital I/O & serial communication | ||
