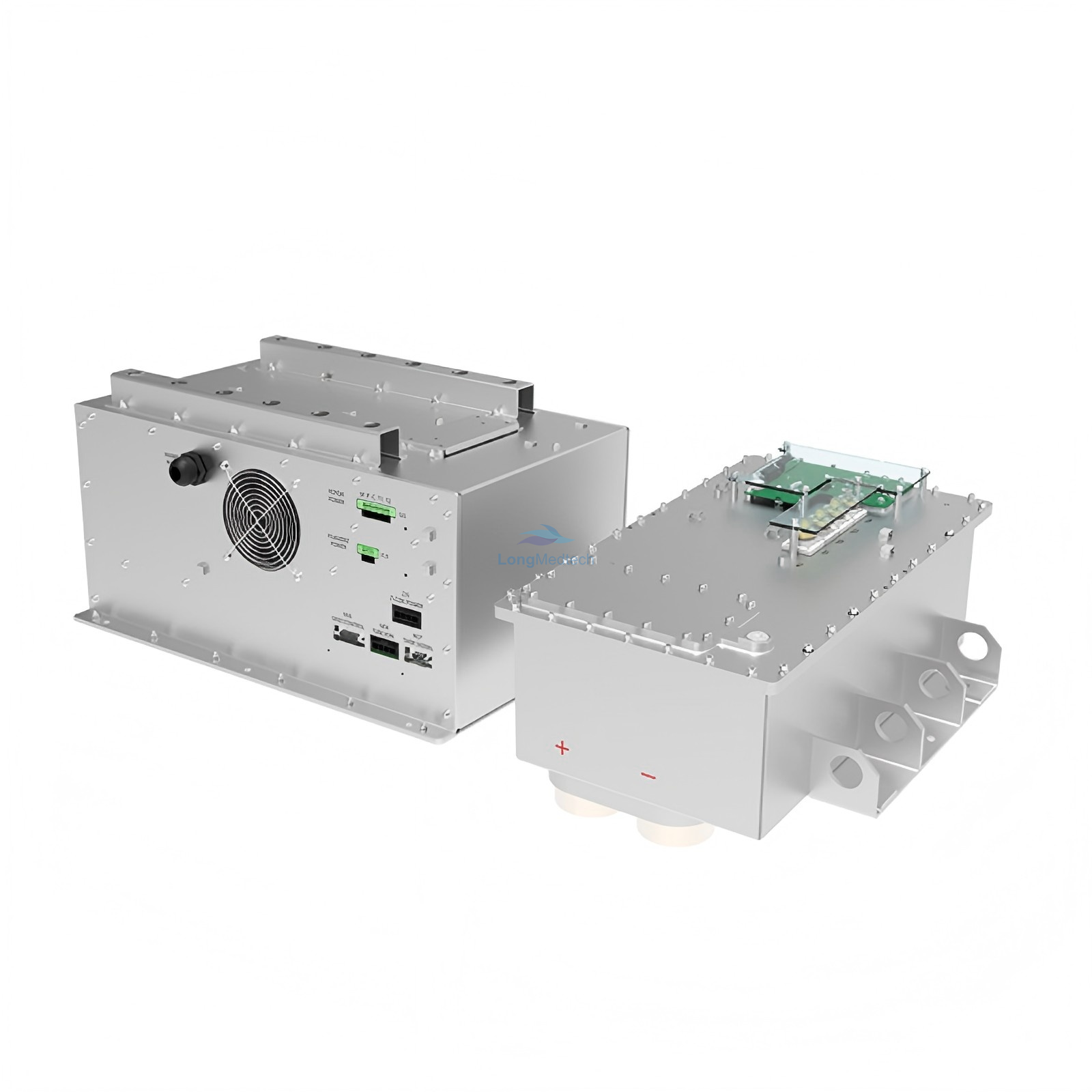

Pyxis 80CT 80kW Medical CT Generator

Quantity:
Availability:





Inquire Add to Basket

Model:
Pyxis 80CT

Medical CT High Voltage Generator X-ray Generator CT Power Supply

Product Description

Pyxis 80CT is specifically designed for medical CT applications. The two-box compact structure is suitable for rotating gantry mounting, with 80kW power and high-power duty cycle characteristics for medical CT scanning requirements. The modular design provides flexible support for X and Z-directional DFS. Easily compatible with various industry bipolar CT tubes. Tube database management and filament intelligent calibration provide excellent solutions to simplify system integration and enhance application functions.

Features

Compact design, gantry rotation speed up to 151RPM
Oil tank, high heat dissipation rate and high reliability
Full digital programming starter
Filament auto-calibration
Grid and Z-deflection options
Available to drive all popular bipolar CT tubes
Modular design for flexible configurations and ease of service
Multi level ARC detection
Tube current modulation

Technical Parameters

Pyxis 80CT
Power Requirement	Main: 3Φ, 380VAC±15%；Aux: 1Φ, 220VAC±15%
Output Performance	Nom. Power: 80kW kV Range: 60 - 140 kV mA Range: 10 –667 mA Grid(optional): 0--3000V; 4kHz MAX Z-Dflection(opitional): 0-5A;4kHz MAX
Starter	Full digital programming
HV Tank Dimension (W x D x H)	510mm x 390mm x 253mm
Inverter Dimension (W x D x H)	558mm x 391mm x 300mm
HV Tank Weight	≈ 43.6kg
Inverter Weight	≈ 33kg
Interface	Digital I/O & serial communication
