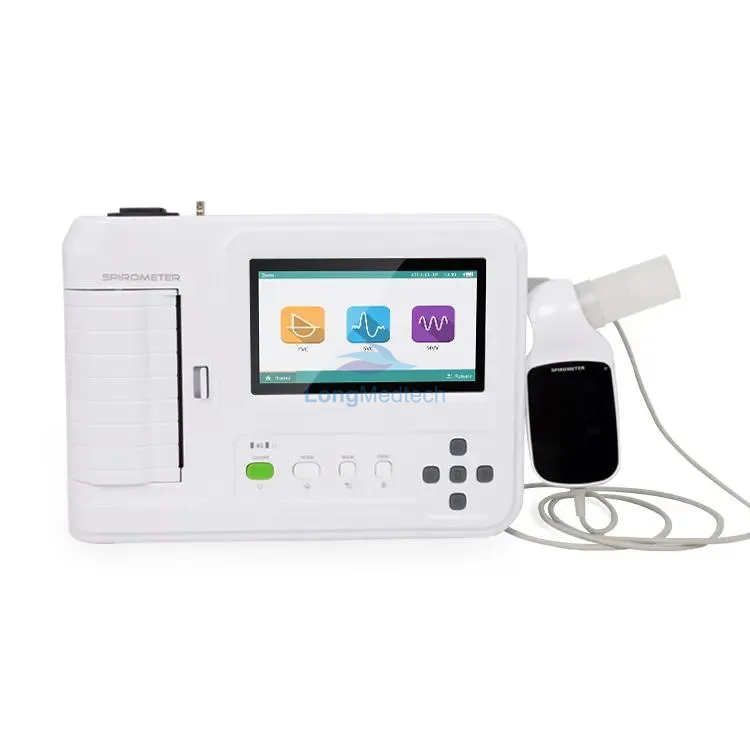

SP100
Features
Measurement of Forced Vital Capacity (FVC), Vital Capacity(VC/SVC), maximum voluntary ventilation (MW) and relevantfunctions, more than 50 parameters can be measured and displayed; for several times of measurement, the optimal result willbe displayed; the condition of subject can be shown by the ratio of the measured value and the predicted value.
Measurement parameters:Forced Vital Capacity (FVC):FVC,FEV1,PEF (FEV1/FVC), FEF25, FEF50, FEF75, FEF2575, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MW, etc.
Vital Capacity (VC/SVC): VC,IC,ERV,IRV,EVC,IVC,TV,VE,RR,t,tE,TV/tI, t/ttot
Maximum Ventilatory Volume (MW): MWReal-time display respiration waveform:Flow-Volume loop andVolume-Time curve chart;
7" color LCD touch screen, buttons can be operated along with touch screen;
Incentive animation operation guide, easy for the use between children and the old;
Built-in thermal printer, reports can be printed directly; BTPS automatic correction function, compensate for the impact of environmental differences;
Test time and environment temperature display;Calibration function, ensure measurement accuracy;
Multiple predicted value can be selected, suitable for different population;
Storage of more than 10,000 groups of data;
Lung age estimation function;Buit-in lithium battery, supports both of AC and DC.
Performance
Volume range:0-10 L(FVC)
Volume accuracy: 3%6 or 0.05 L (whichever is greater)
Flow Range:0~16L/s
Flow accuracy: +5% or 0.2 L/s (whichever is greater)
Power supply: 100V-240V~ 50 Hz/60 Hz
Input power: 60VA
Safety type: Class I equipment, type BF applied partLCD screen: 7" color TFT touch screen
Printing paper: 112 mm(W)x20 m(L) high-speed thermal paper

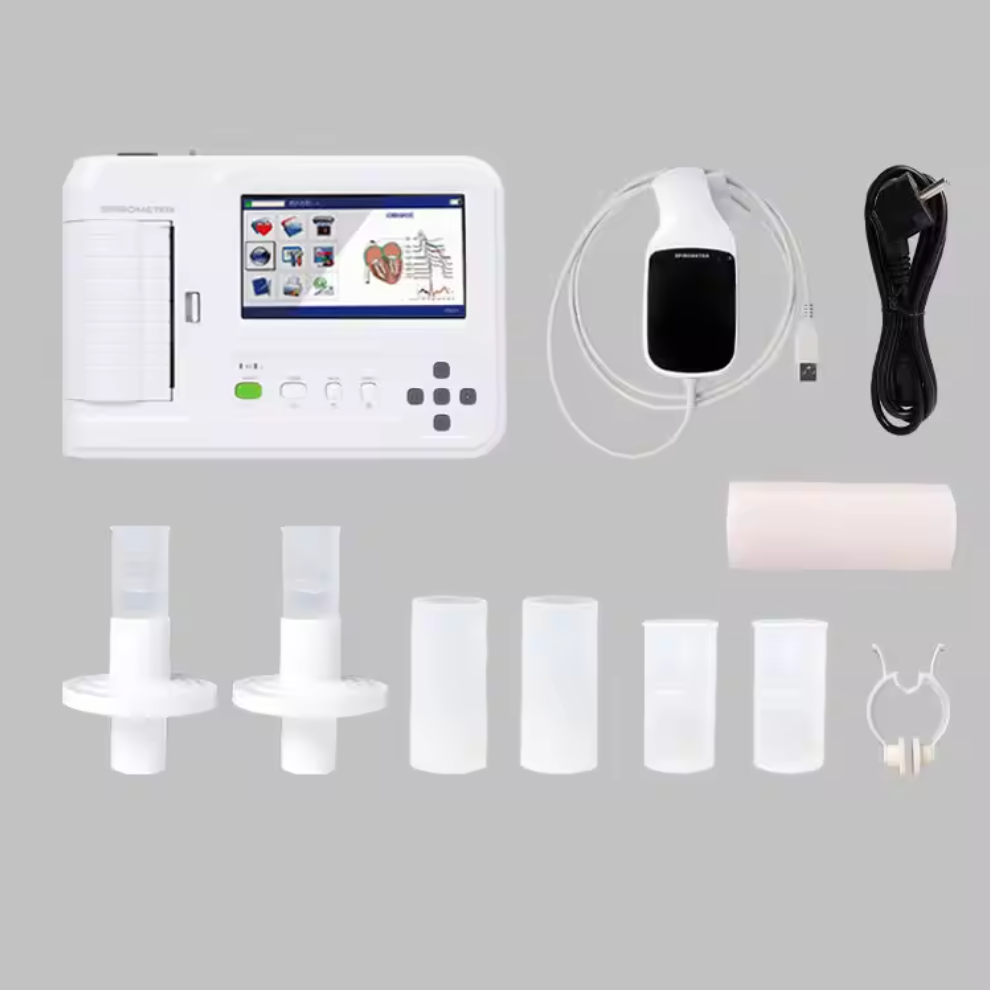

Accessories
Spirometer 1pc
Mouthpiece 4pcs(disposable accessory)
Recording paper Ipc
nose clip lpc¥8
Powercord Ipc User Manual Ipc
breathing filter(disposable accessory)
Physical characteristic
Dimension:315 mm(L)x215 mm(W) x92 mm(H)
Weight: 1.8 kg
