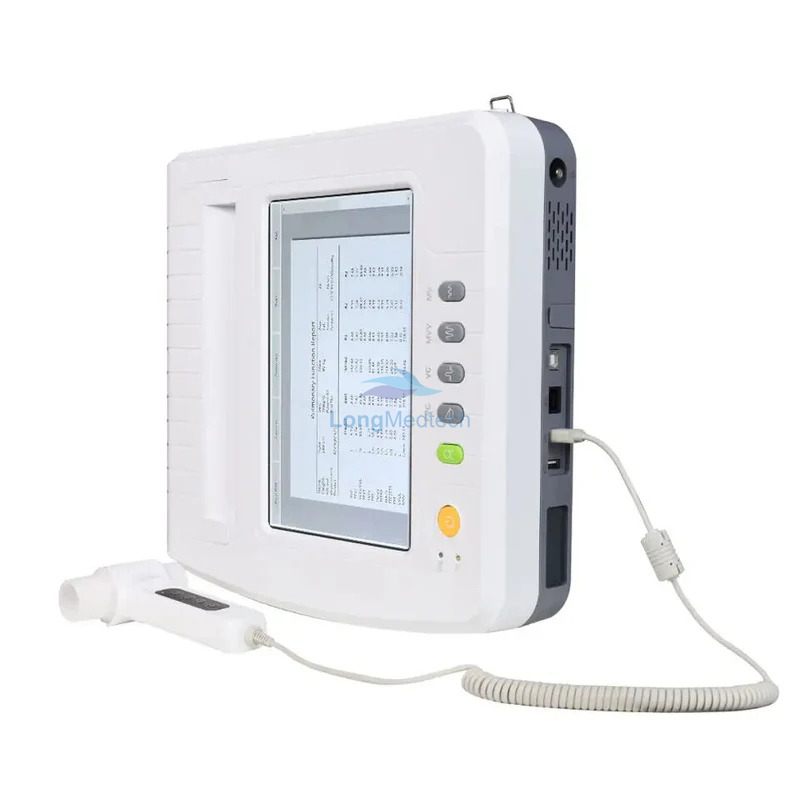

SP100B
Differential pressure detection technology, with a professional lung function software, which can measure over 100 parameters related to FVC, VC, MVV and MV functions.
Measure inspiratory and expiratory parameters, real-time curve display.
BTPS correction function, measure temperature, humidity and barometric pressure automatically.
Quality control function, automatic QC rating.
Calibration control function: volume calibration, three flows verification.
Display the optimal value from many measurements.
The tester condition can be reflected by the ratio of the measured value and the predicted value.
Flow-volume and volume-time curve
Data memory, delete and information review functions.
Trend chart display.
Prompt functions for over-limit of volume and flow.
Rechargeable lithium battery, with charging prompt.
Battery power indication.
Built-in multiple predicted values.
Support bronchial dilation / provocation test.
Pulmonary function assessment.
Follow-up questionnaires function.
Patient information can be entered, managed and queried.
The test report can be printed and output by the built-in 210mm thermal printer.
The external printer can be connected to print and output the test report.
10.1" capacitive touch screen.
Wi-Fi function.
Built-in ID card reader (optional).
Performance:
Display mode: 10.1" color LCD
Display resolution: 1280* 800
Volume range: 0L- 10L (BTPS)
Volume accuracy: I 3% or I 0.05 L (whichever is greater)
Flow range:0L/s- 16 L/s (BTPS)
Flow accuracy: 5% or 0.17 L/s (whichever is greater)
Power consumption: P 150V-A
Power supply: DC 14.8 V rechargeable lithium battery or AC220V 50Hz
Safety class: class Ior internally powered equipment, type BF ap-plied part
Accessories:
Apulmonary function probeAUser Manual
100 mouthpieces (round: 50, flat: 50)
Acord set
Arecording paper
Anearth line
Anose clip (optional)
Physical characteristic:
Dimension: 340 mm (L) X 320 mm (W) X 86 mm (H)
Weight: about 4000
