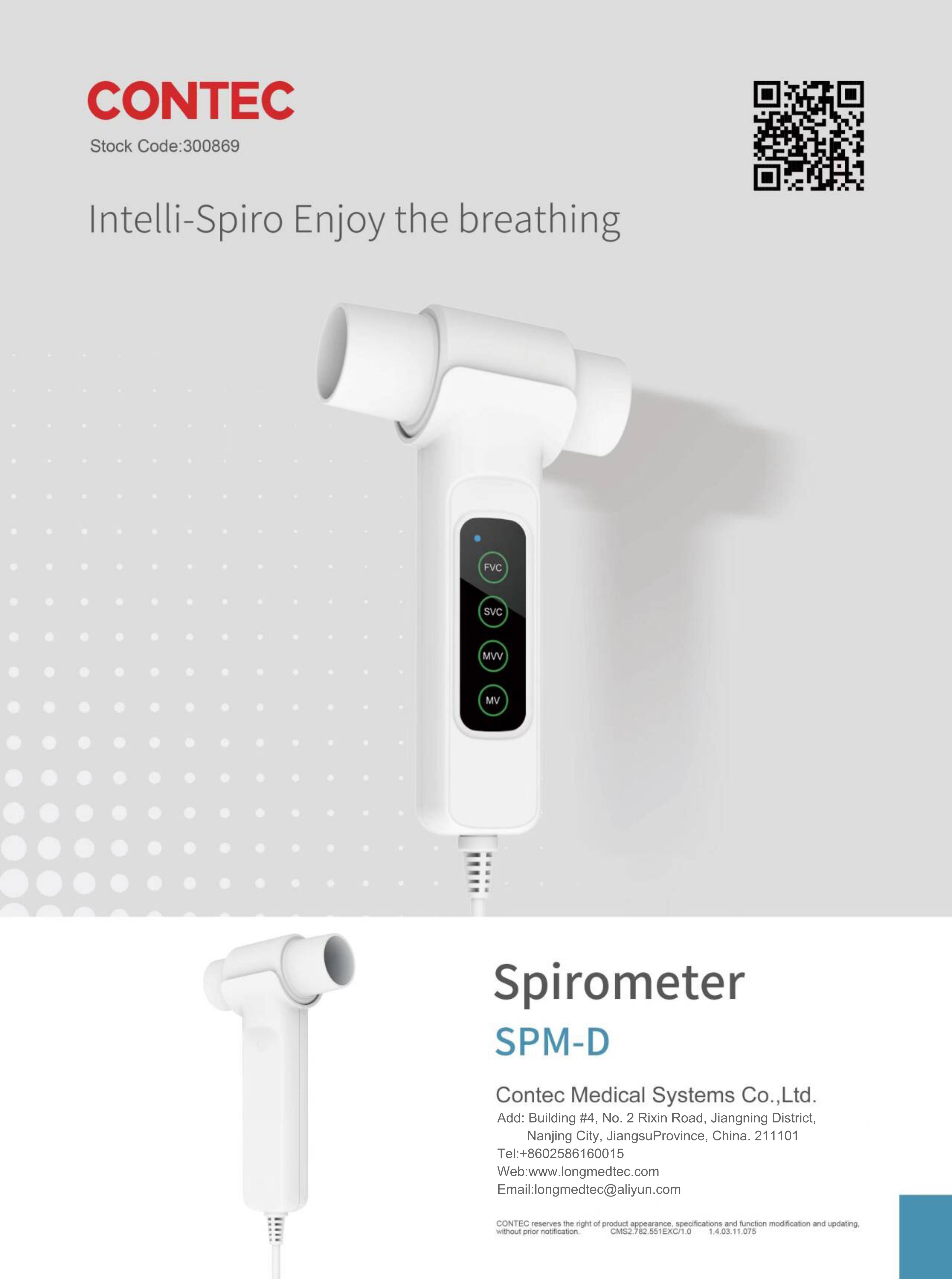

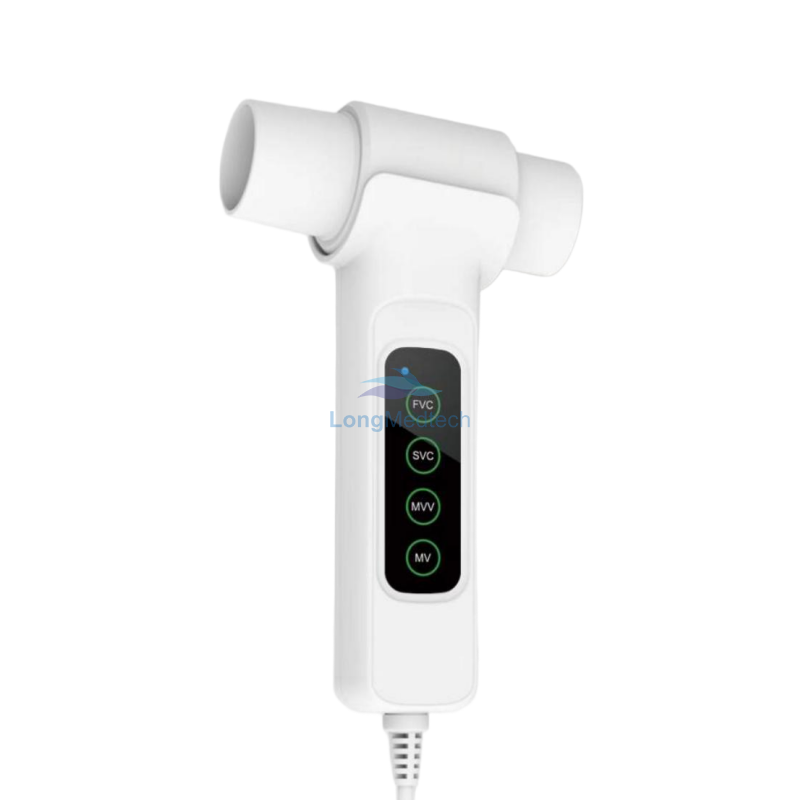

SPM-D Spirometer

SPM-D is a device fortesting pulmonary function, combining with professional pulmonary function software, itis used to test the patient'srespiratory function and lung status; itadopts diferential pressure collection principle to measure FV,SVC, MW, Mand relative parameters,real-time displays respiratory waveform, which is applicable for diagnosis and response evaluation of lung diseases (such as asthma, COPD.pulmonary fibrosis and cough, etc. ), preoperative safety evaluation and routine physical examination, etc.

It can be widely used in many sce-narios, such as respiratory medicine, thoracic, anesthesiology, surgery. prevention and control institutions of occupational disease, physicalexamination institutions, etc.

Features

• Measure and display over 100 parameters related to FVC, SVC,

• MVV and MV functions.Display trend chart and respiratory waveform tested, recom-mend the optimal test curve intelligently.

• With managementfunctions of user information and case data.

• Built-in multiple predicted values, which can be set manually.

• BTPS self-correction function, measure environment parametersautomatically.

• Pulmonary function assessment function.

• Support bronchial test.

• With calibration function and quality control, ensure the test accuracy.

• With quality control function, recommend the test curve withhigh acceptability intelligently.

• With report generation, editing and printing functions.

• One-button testfunction.

Performance

. Volume range:0~ 10L

 Flow range: 0L/s~16L/s

. Volume accuracy: + 3 % or + 0.05 L (whichever is greater). Flow accuracy: + 5 % or + 0.17 L/s (whichever is greater)

Accessories

AUser Manual

Anoseclip

A mouthpiece (disposable)

PC software

Physical characteristic

Dimension: 143 mm (L) X 84 mm (W) X 41 mm (H)

Weight: 130g
