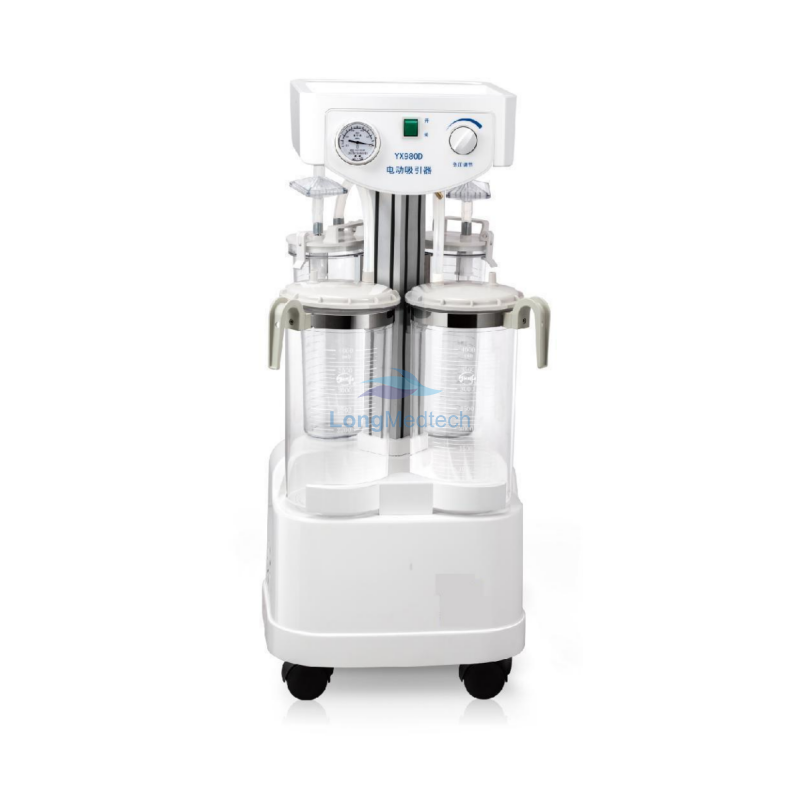

Product overview
1. Oil-less piston pump, maintenance free, flow rate can reach toover 80L/min, rapid vacuum rising.
2. Overflow protection device prevents liquid from entering into theinner pipe and pump.
3. Air filter protects pump from being polluted.4. Transparent and high intensity polycarbonate plastic jar, high ca-pacity and easy to clean.
5. Can select empty container fast during operation by change-overvalve, rinsing cup is for placing catheter during operation.6. The accessory box on the back of the case is for laying foot sw-itch, power cord, etc. which is more convenient during movementor storage.
Specification parameter
1. Max vacuum: >0.09MPa (680mmHg)2. Adjustable vacuum range: 0.02MPa~0.09MPa
3. Flow rate: >80L/min
4. Noise:≤60dB(A)
5. Jar: 4000mlx2+2000mlx2 (PC)
6. Power supply: AC220 50Hz
7. Input power: 280VA
8. Dimension:330mmx390mmx890mm
9. Package Dimension: 440mmx500mmx995mm
10. G.W./N.W.: 27 kg/22kg
