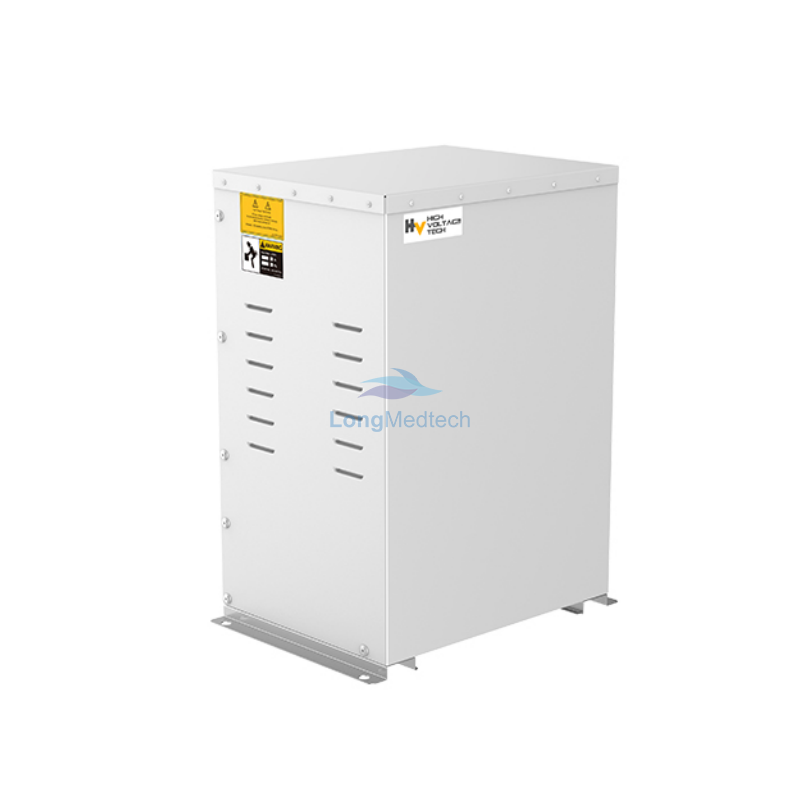

CETUS R10
CETUS R10 is a capacitor-assist high voltage generator, designed for medical X-ray radiographic systems. The product mainly consists of control systems, inverter module, HT tank and capacitor banks. Nominal power is up to 56kW.
Features
Unmatched size and high power density
Short kV rising time
Rapid charging time
Less than 16A input power current
High voltage check mode available, easier for arcingpositioning
Regular tube calibration not required, generator automatically maintain output accuracy
Technical Parameters
| CETUS R10 | |||
| Switching Frequency | 70 - 250 kHz | ||
| Power Requirement | 100 - 120 VAC，± 10%，1 Phase or 208 - 240 VAC，± 10%，1 Phase; 50 / 60 Hz; ≤ 4 kVA | ||
| Radiographic Output Performance | Nom. Power: 20kW/32kW/50kW/56kW kV Range: 40 - 150 kV, variable in 1kV step mA Range: 10 –400 mA (20kW)/10 –400 mA (32kW)/10 - 630 mA (50kW)/10 - 710 mA (56kW) ms Range: 1 - 20000ms mAs Range: 0.1 - 40 mAs (20kW)/0.1 - 63 mAs (32kW)/0.1 - 100 mAs (50kW)/0.1 - 100 mAs (56kW) | ||
| Rotor Starter | Low Speed Starter(20kW/32kW)；Low Speed Starter, Option:Variable Speed Starter, only for 208-240VAC line voltage(50kW/56kW) | ||
| Dimension (W x D x H) | 454 mm x 359.5 mm x 461.5 mm (20kW/32kW)/454 mm x 359.5 mm x 658.5 mm (50kW/56kW) | ||
| Net Weight | 42kg (20kW)/60kg (32kW)/65kg (50kW)/65kg (56kW) | ||
| Communication Interface | RS - 232（Standard）； CAN (Optional) | ||
| Techniques | mA/ms；mAs；mAs/ms；AEC；AEC/mA；APR | ||
