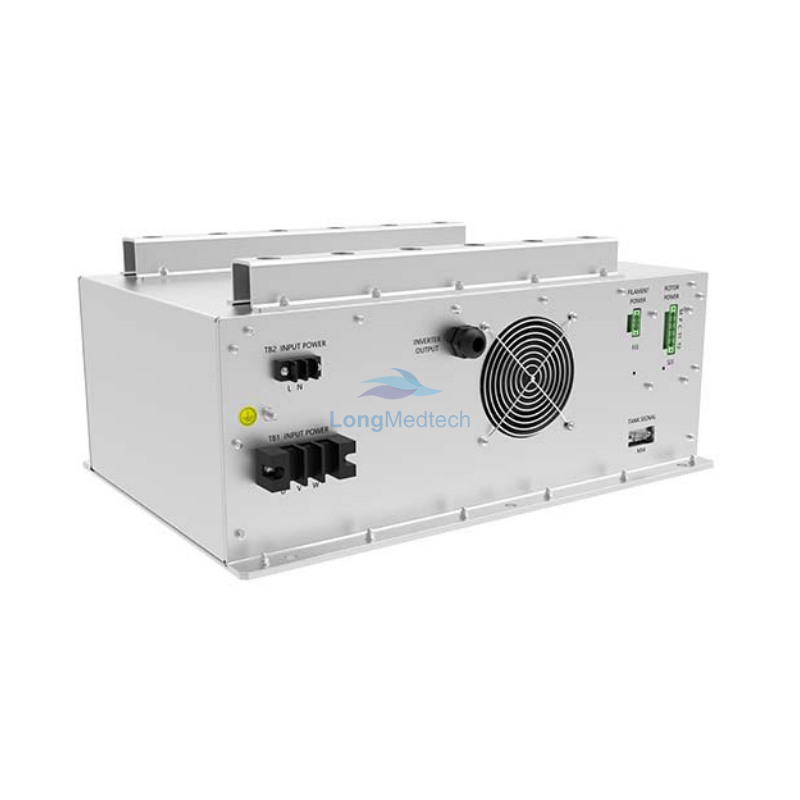

Pyxis 50RT
Pyxis 50RT is specifically designed for high power IGRT CBCT applications.Compact 2 chassis packaging suitable for rotating gantry mounting, 50kW output power to meet IGRT CBCT and dual energy application requirements. Serial pulsed exposure and dual energy pulsed exposure capabilities support seamless integration with dynamic detectors for advanced imaging applications. RS232 or CAN communication interface provides simple and flexible protocols for system integration.
Features
Suitable for rotating gantry installation, support up to 120 rpm gantry speed.
Pulsed exposure sequence for CBCT application，40fps
Dual energy exposure mode
High power, multi-mode high frequency inverter technology
RS232/CAN serial communication interface
Configurable tube table and full digital programing starter
Technical Parameters
| Pyxis 50RT | |||
| Power Requirement | Main: 3Φ, 380VAC±15%；Aux: 1Φ, 220VAC±15% | ||
| Output Performance | Nom. Power: 50kW kV Range: 40 - 150 kV kV Rise Time: < 1ms mA Range: 1 – 630 mA Serial Pulse Exposure Rate: 40 fps (MAX) | ||
| Starter | Full digital programming | ||
| Gantry speed supported | 120 rpm | ||
| HV Tank Dimension (W x D x H) | 435mm x 200mm x 207mm | ||
| Inverter Dimension (W x D x H) | 550mm x 379mm x 241mm | ||
| HV Tank Weight | ≈ 26kg | ||
| Inverter Weight | ≈ 25kg | ||
| Communication Interface | RS - 232； CAN (Optional) | ||
