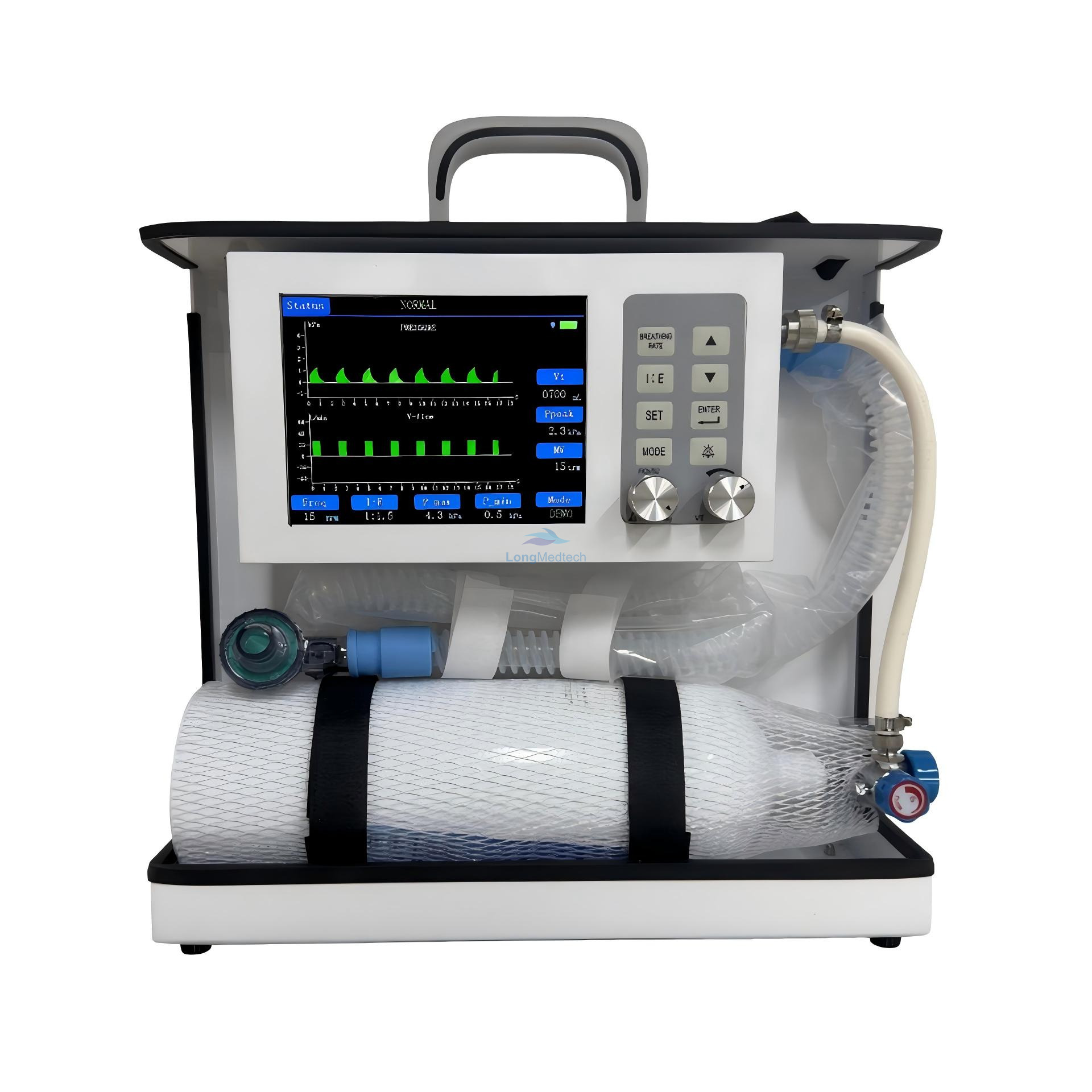

LAMA-4 Portable Ventilator

Scope of Application: Suitable for emergency rescue and transport scenarios, primarily used for respiratory support in adults, children, and infants.

Ventilation Modes:

Supports multiple modes, including A/C, SIMV, IPPV, and SIGH.

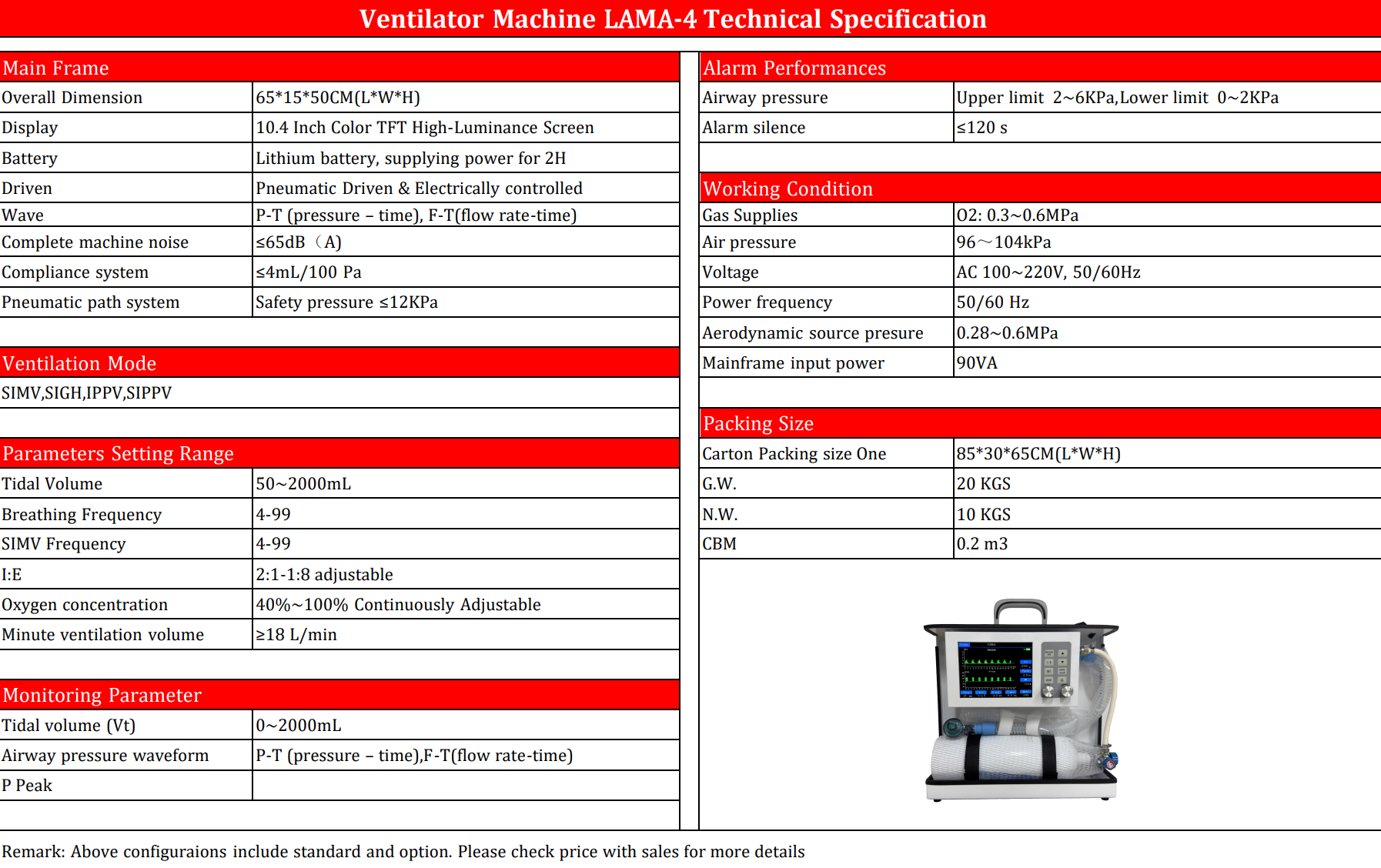

Technical Parameters:

    Respiratory Rate (RATE): 4~60 breaths/minute.

    Tidal Volume (Vt): 0~2000mL.

    Inspiratory-Expiratory Ratio (RATIO): 1:0.1~1:3.

    Synchronous Trigger Pressure (Pt): -0.3KPa.

    Inspiratory Oxygen Concentration: 40%±15%.

Portability and Power Supply: Dimensions are 400 x 130 x 350 mm, weight is 8 kg, making it easy to carry and move. Supports AC 220V power charging, and the main unit input power is 90VA.

Alarm System: Features upper pressure limit (2~6KPa) and lower pressure limit (0.6KPa~2.0KPa) alarm functions, and includes a mute function.

This device has a compact structure and is suitable for use in ICUs or temporary emergency rescue situations within medical institutions.
