Features:
Multiple ventilation modes, suitable for ICU, emergency department
and operation room etc: (PRVC, APRV, DUOLEVEL, IPPV, PCV, PSV,
V-SIMV, P-SIMV,V-A/C, P-A/C, SPONT/CPAP, SIGH, MANUAL)
Pressure and flow dual triggering mechanism make patient brea the better and more comfortable.
Rapid oxygen supply, automatically offer high flow rate oxygen within two minutes.
Pressure-Time, Flow-Time, Volume-Time, ETCO2-Time oscillogram, real-time display the condition of patient in all respects. Separate design of electronic circuit and gas flow rate keep safe running of ventilator.
Compact long life internal battery can provide emergency power, avoid risk of patient.
Three level alarm system display overall condition of machine, easier for users to find and solve problems according to indication.
Oscillogram freezing and recovery offer doctors a better understanding of the real-time situation for patient.
Self-check before operation, ensure every port of machine is in good condition.
Size:
1. Wooden case packing size(main engine):L 700*W 710*H 380mm , GW:35KG ; NW:17.7KG
2. Wooden case packing size(frame):L 160*W 195*H 1100mm , GW:6.7KG ; NW:2KG
Alarm and protection |
The AC power failure alarm
Internal battery backup low voltage alarm | Power failure or no connection
<11.3±0.3V |
High oxygen concentration alarm
Low oxygen concentration alarm | 19%-100%
15%-99% |
High Airway pressure alarm
Low air input pressure alarm
Low oxygen input pressure alarm
Air and oxygen blender alarm
Compression pump alarm | 1.5kPa-6kPa
<200kPa
<200kPa
When any gas source lack
When differential pressure> 0.1mPa
Excess temperature |
| Working conditions |
|
| Gas source | O2,AIR |
| Pressure | 280kPa-600kPa |
| Voltage | 100-240V |
| Power frequency | 50Hz±1Hz |
| Input power | Main engine:≤25W
Air compressor:≤675W |

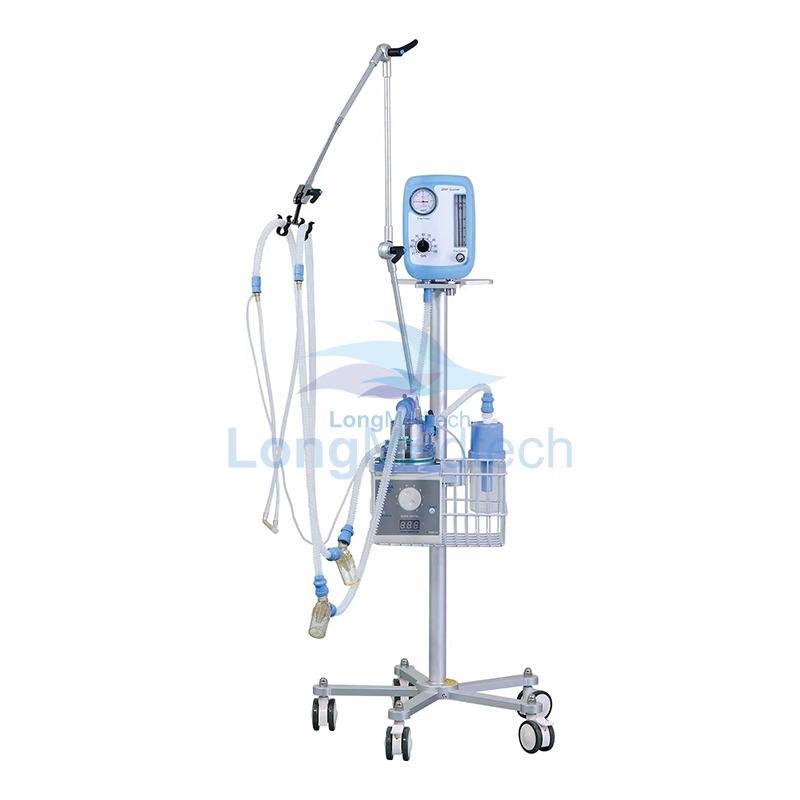

| Features | * Integration breathing circuit design, ensure easy operating and keep tidy.
* Real time pressure-timegraphics and high precisionO2 concentration detection function included.
* Built-in air and oxygen blender, ensure stable oxygen concentration.
* Reliable CPAP control valve and pressure monitoring system improve CPAP adjustment precision. |
| Safety | * Two wheels with brake, ensure stable operating.
* Pressure meter and flow meter ensure accurate adjusting of parameters. |
| Specifications |
Ventilator parameter ranges
Oxygen concentration
Adjusting range:21%-100%
CPAP
Adjusting range:0cmH2O-10cmH2O
Continuous flow
Adjusting range:1.5L/min-15L/min
Air compressor
Continuous output flow:≥25L/min
Peak output flow:≥120L/min
Size:
1. Wooden case packing size(main engine):L 700*W 710*H 380mm , GW:35KG ; NW:17.7KG
2. Wooden case packing size(frame):L 160*W 195*H 1100mm , GW:6.7KG ; NW:2KG
Alarm and protection
The AC power failure alarm
Internal battery backup low voltage alarm
Power failure or no connection
<11.3±0.3V
High oxygen concentration alarm
Low oxygen concentration alarm
19%-100%
15%-99%
High Airway pressure alarm
Low air input pressure alarm
Low oxygen input pressure alarm
Air and oxygen blender alarm
Compression pump alarm
1.5kPa-6kPa
<200kPa
<200kPa
When any gas source lack
When differential pressure> 0.1mPa
Excess temperature
Working conditions
Gas source
O2,AIR
Pressure
280kPa-600kPa
Voltage
100-240V
Power frequency
50Hz±1Hz
Input power
Main engine:≤25W
Air compressor:≤675W |
| Trust Points | Si * Simplicity: easy to use, easy to move with 4 wheels.
* Choice: adapt the equipment to your patients and procedures freely
* Designed and manufactured by Superstar Medical with over 23 years experience in this area.
* Flexible configurations to suit your needs.
* International standard and advanced technology suitable for all baby patient around the world.
* Compact interface and big screen give you better operating experience.
* Over 2,000 units installed in the world. |
|
|
|
|
|
|
Ventilator parameter ranges |
|
| Oxygen concentration | Adjusting range:21%-100% |
| CPAP | Adjusting range:0cmH2O-10cmH2O |
| Continuous flow | Adjusting range:1.5L/min-15L/min |
| Air compressor | Continuous output flow:≥25L/min
Peak output flow:≥120L/min |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
