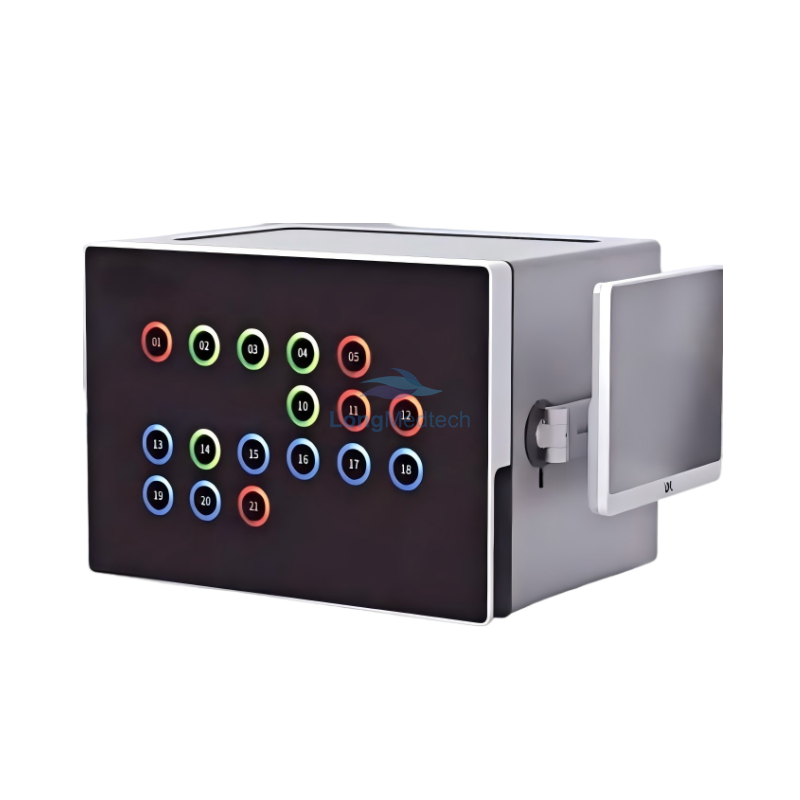

LCM-240 Auto Blood Culture System

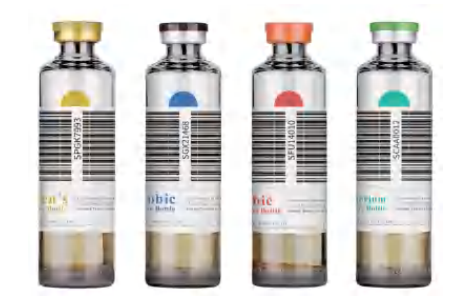

Culture bottle Features

Types: Aerobic blood culture bottle

Anaerobic blood culture bottleChildren's blood culture bottle(pediatric)Mycobacterium blood culture bottle

Effective neutralization of a wide variety of antimicrobial improves recoveryrate and shortens the time to positive(TTP).

Resin beads lyse WBC and release bacteria inside to improve detection rate.Aerobic and pediatric bottles can grow fungi effectively.High nutrition ingredients with X factor and Y factor

Auto Blood Culture System

For quick culture and detection of microorganisms in blood and other sterile body fluid

System features

Compact and flexible design

Fully automation, bench-top, random access

To fit different size of laboratory

Expandable capacity

Control, incubation module and monitor all in one (24 cells)

Incubation module (24 cells)

Capacity:24 cells

Module temperature control

Independent cell heater to avoid temperature dropping

To ensure incubation ambient temperature

For fast growth of microbes

Novel algorithm

Apply multiple Al algorithm to shorten the time to positive

Satellite blood culture network

Distribute incubation modules to different wards like ICU, Emergency,Outpatients etc,andconnect by IOT for shortening the sample delivery time.

System Specification

Test principles: Colorimetry

Sample type: Blood and various sterile body fluid

Win 10 system with touch screen

LIS connection available

Data analysis and statistics with growth curve and values

Culture method: Continuous swinging vibration. Detect bottles every 10 minutes by

independent detector

Alarm by audio, door light flash and screen flash

Built-in barcode scanner

Printing function available

Double barcode management

Power supply:100-240V 50/60Hz+1Hz

Ambient Temperature: 5-30°C

Instrument size:417*271*262mm

Package size: 560*430*520mm

Gross Weight: 18kg

Capacity:24 cells

Over-time monitoring

Door surface colorful indicator to visually illustrate Positive/Negative result at real time

Note: The above specification is subject to change without notice.
