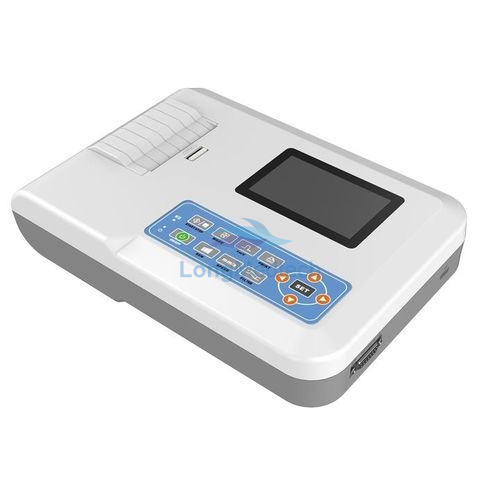

LKT45 Electrocardiograph

LKT45 G is an Electrocardiograph which can collect 12-lead ECG signal simultaneously and print waveform by thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for "Lead off" and "Lack of paper", multi-language interface, AC/DC, optional rhythm lead that convenient to observe abnormal heart rhythm, case database management, etc.

Quantity:
Availability:





Inquire Add to Basket

Model:
LKT45

ECG Arrhythmia Heart Disease Electrolyte Imbalance

Product Description

Function:

Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power fre-quency filter, baseline filter and EMG filter of ECG signal.

Display of 3/6/12-lead ECG, printmode, sensitivity, paper speedand filter state,etc. on one screen, convenient for contrastively diagnosing.

Multiply printing modes and formats, including manual, auto4x3, auto 3x4+1,auto 3x4, auto 2x6+1,auto 2x6, auto 3-2+1,auto3-2, auto 1x12+1, auto lx12, rhythm 4, rhythm 3,rhythm 2, etc.Waveform length printed can be adjusted, and with timed printfunction, which meets different requirements.

With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor' s burden.

Build-in large capacity memory stores at least to 1000 cases, which is convenient for doctor to review case and statistic.

Multi- language(Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Russian, Ukrainian, Serbian, Vietnamese, Slovenian, Slovak, Bulgarian and Nigerian language) interface and report.
