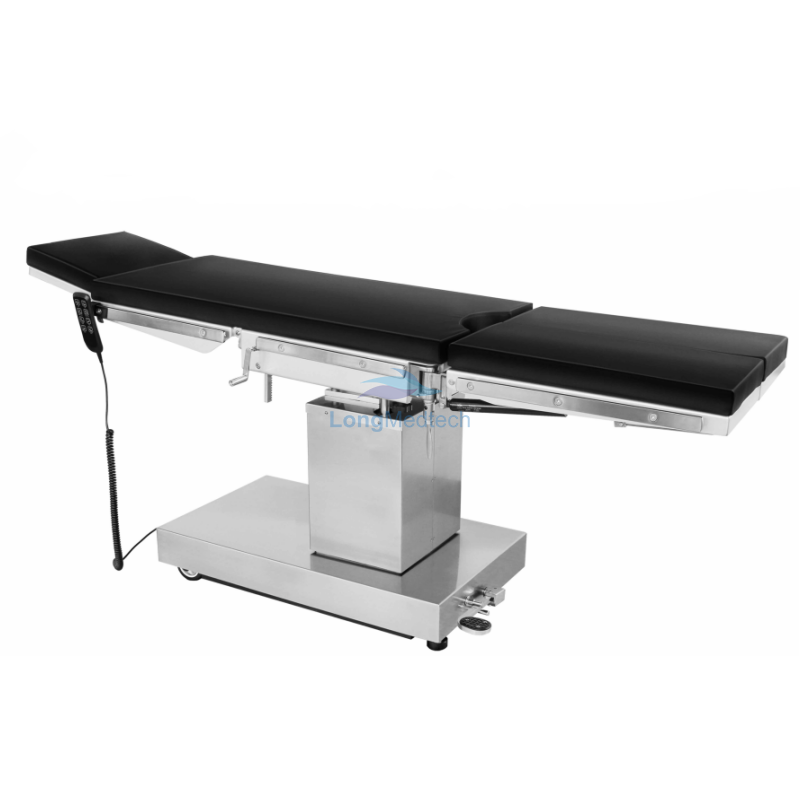

LOL281 Electric Operation Table (electric Gear)

FEATURES

• Imported Linak motor

• Handheld remote controller

• Leg plates are controlled by gas spring

• Leg plates are split and detachable.

TECHNICAL SPECIFICATION

Length: 2000±100mm, Width: 520±20mm

Height Adjustment: （750-1000）±50mm

Tilt Left:≥15°  Tilt Right: ≥15°

Trendelenburg: ≥15°   Rev-Trend:≥15°

Headboard Upwards: ≥50°  Headboard Downwards: ≥90°

Backboard Upwards: ≥70°  Backboard Downwards: ≥30°

Lumbar Upper Corner/Lumbar Lower Corner: ≤150°/≤120°

Leg board upwards: ≥20°  Leg board downwards: ≥90°

Leg board split: ≥180°(detachable)

Waist board lifting: 100±20mm

Input Power: 300±10％VA

Power Supply: AC 220V±22V  50Hz±1Hz
