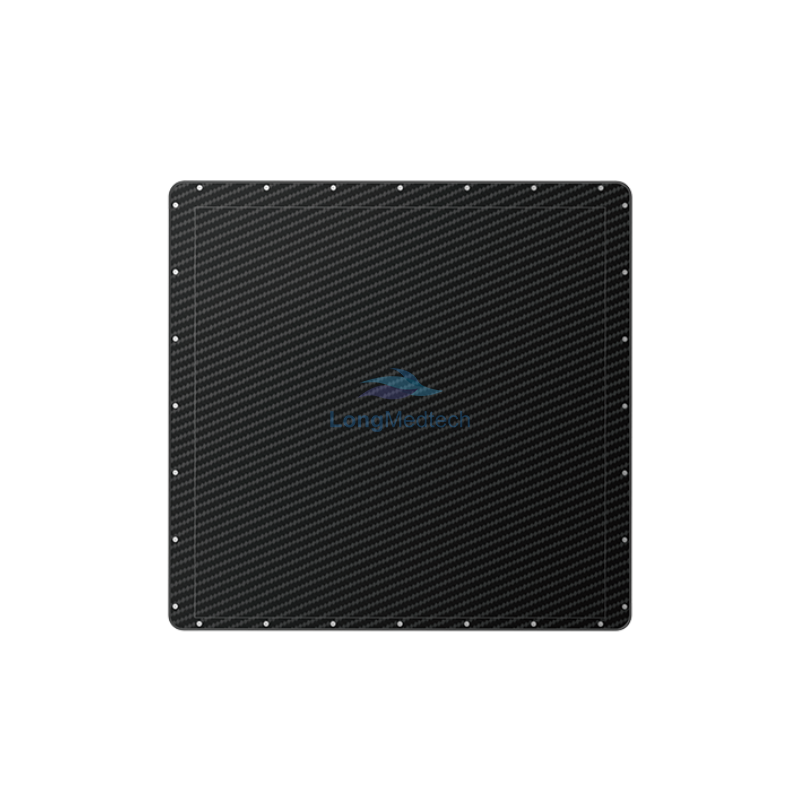

Mercu 1717XN
Mercu 1717XN is an a-Si FPD designed for real-time imaging.The 17x17-inch image sensor has direct deposition CsI, whichprovides excellent low-dose imaging at frame rates up to 25fps. It is a combination of dynamic and wireless detector with 100μm pixel pitch design , which provides more solution for DRF products.
Features
17x17-inch imaging area with a 100 μm pixel pitch
Support wireless radiography application
a-Si sensor with direct deposition CsI
Distortion-free imaging with high SNR
2 fps in full resolution and 8 fps in 2x2, 25fps in 4x4
Technical Parameters
| Mercu 1717XN | |||
| Detector Technology | Amorphous Silicon | Data Interface | GigE |
| Scintillator | CsI | Operating Temperature (℃) | 10~40 |
| Active Area (inch) | 17 × 17 | Operating Humidity (% RH) | -10~55 (Non-Condensing) |
| Pixel Matrix | 4260 × 4260 | Storage & Transport Temperature with Package (℃) | 20~90 |
| Pixel Pitch (μm) | 100 | Storage & Transport Humidity with Package (% RH) | 10~95 (Non-Condensing) |
| Limiting Spatial Resolution (lp/mm) | 5 | Dimensions (mm) | 460 × 460 × 15 |
| AD Conversion (bit) | 16 | Weight (kg) | 3.4 |
| Frame Rate (fps) | 2 (1×1) 10 (2×2) 25 (4×4) | ||
