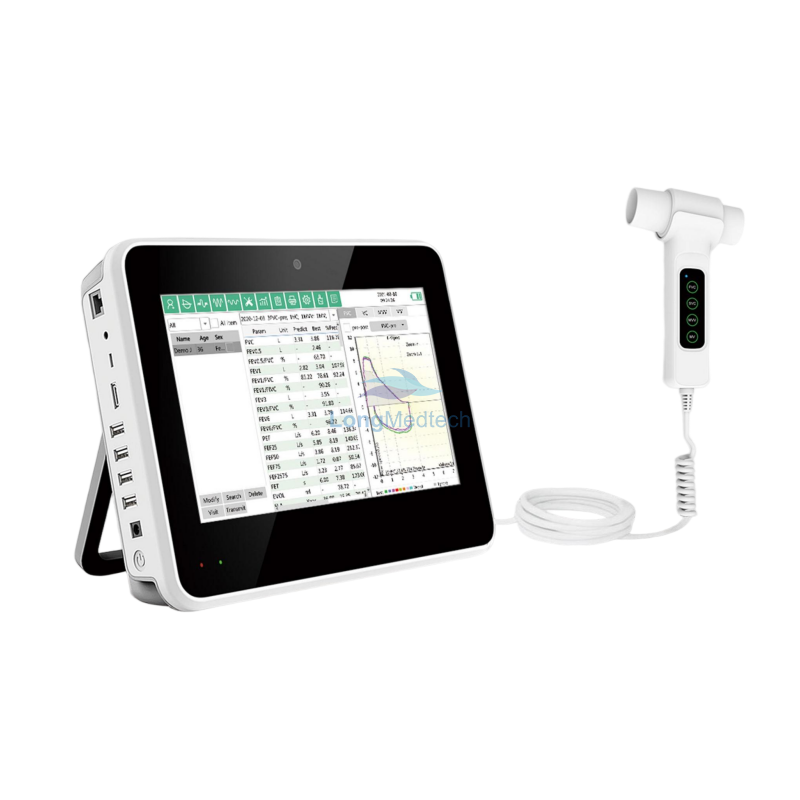

SP100A Spirometer

The Spirometer is a portable device for testing pulmonary function, it adopts differential pressure acquisition principle to measure over 100 parameters related to FVC, VC, MWand MV functions.

It can be used in many scenarios, such as hospital, clinic, family, MVW and provocation test before / after medication, etc. which can provide the test results of pulmonary function for the users and the basis for the medical staff to make diagnosis.

Function

Differential pressure detection technology, with a professional lung function software, which can measure over 100 parameters related to FVC,VC, MW and MVfunctions.

Measure inspiratory and expiratory parameters, real-time curve display.

BTPS correction function, measure temperature, humidity and barometric pressure automatically.

Quality control function, automatic QC rating.

Calibration control function: volume calibration, three flows verification.

Display the optimalvalue from many measurements.

The tester condition can be reflected by the ratio ofthe measured value and the predicted value.

Flow-volume and volume-time curve.

Data memory, delete and information review functions. - Trend chart display.

Prompt functions for over limit of volume and flow.

Rechargeable lithium battery, with charging prompt.

Battery power indication.

Built-in multiple predicted values.

Support bronchial dilation/provocation test.

Pulmonary function assessment.

Follow-up questionnaires function.

Patient information can be entered, managed and queried.

The external printer can be connected to print and output the test report.

10.1" сарacitive touch screen. Wi-Fi function.

Voice prompt function.

Built-in ID card reader (optional).

Performance

Display mode: 10.1" color LCD

Display resolution: 1280*800

Volume range: 0L~ 10 L (BTPS)

Volume accuracy: + 3% or + 0.05 L (whichever is greater)

Flow range: 0L/s ~ 16 L/s (BTPS)

Flow accuracy: + 5% or I0.17 L/s (whichever is greater)

Power consumption: P ≤ 50 V.A

Power supply: DC 7.4 V rechargeable lithium battery or power adapter (AC220V 50Hz)

Safety class: classI or internally powered equipment, type BF ap-plied part

Accessories

- Apulmonary function probe

- A User Manual

- 100 mouthpieces (round: 50, flat: 50)- Apower adapter (including cord set)

- Anose clip (optional)

Physical characteristic

Dimension:275 mm (L) X 220 mm (W) X 67 mm (H)

Weight: about 1800 g
