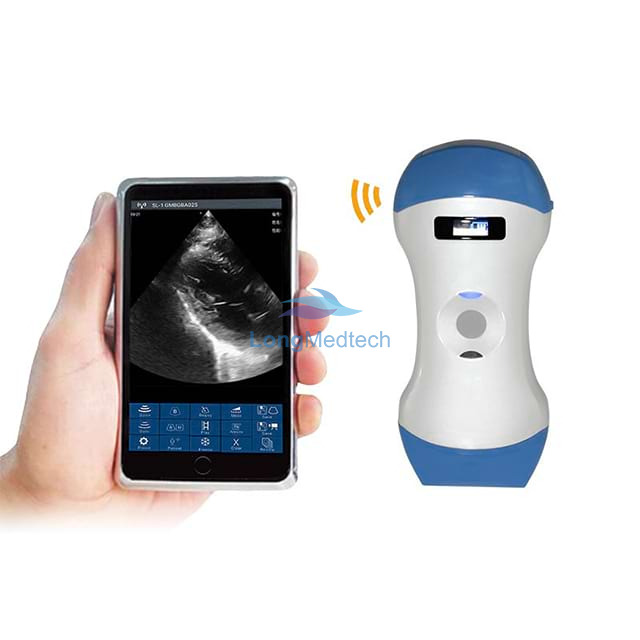

3in1 Palm Doppler Ultrasound

Features

• Small and small size,easy to carry.

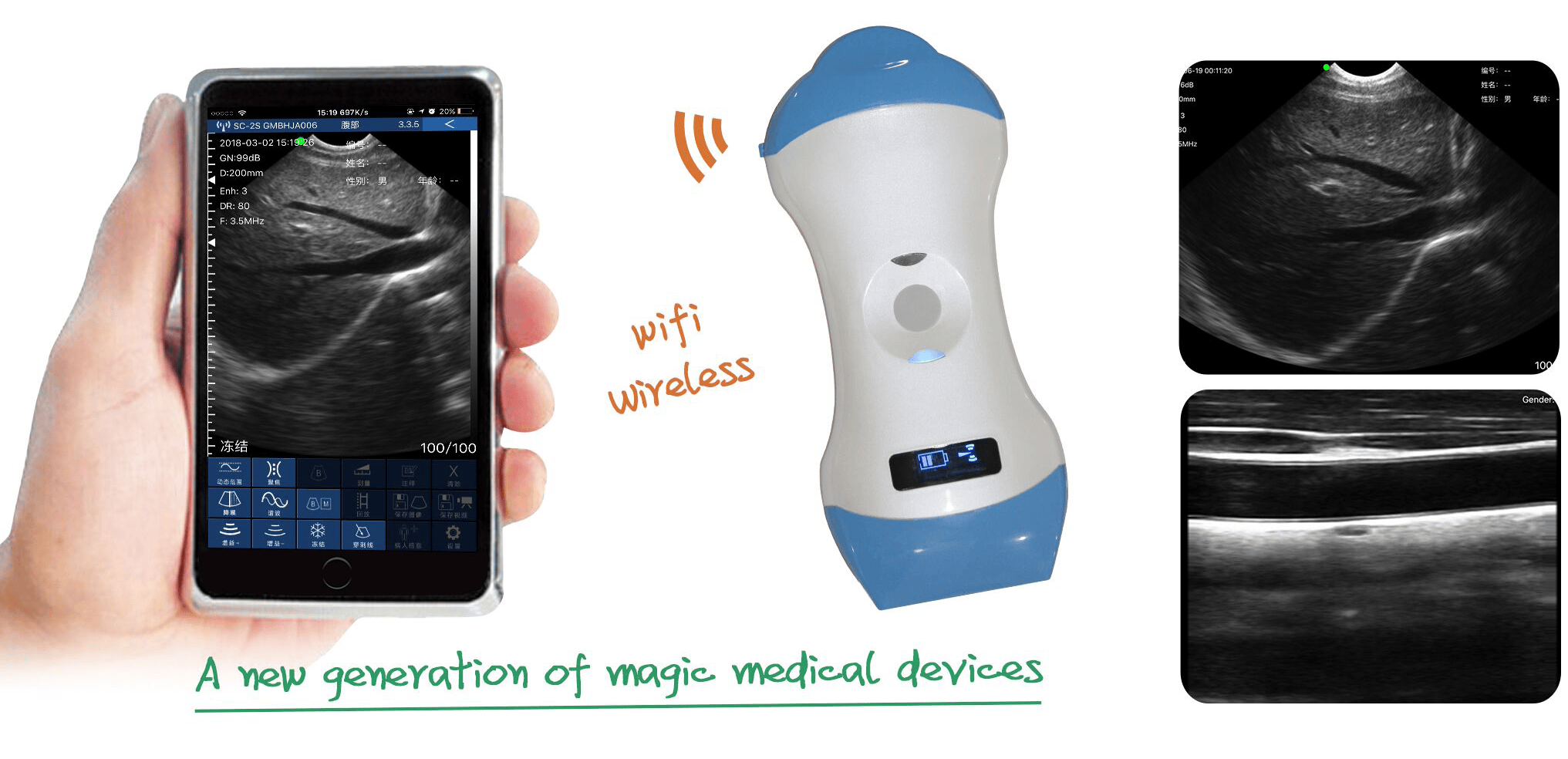

• Wireless type without probe cable,working freely.

• Waterproof design,convenient for sterilization.

• Remote diagnostic convenience,capability and easy image transfer.

Standard Configuration

• Wireless probe device 1 Unit

• Built-in Battery and charge cable 1 Set

• User Manual copy

Specifications

• Scan mode:micro-convex or linear array scanning;

• Frequency:Micro-Convex probe 5.0/7.0MHz,Linear probe 7.5/10MHz

• Elements:128 elements

• Scanning Depth:Micro-Convex 60-160mm,Linear 20-80mm,adjustable

• Field of view:Micro-Convex R20,Linear L40

• Screen:Smart phone or tablet screen

• Supporting system:iOS,Android,Windows

• Display mode:B,B/M,Color,PDI,PW

• Frame rate:18f/s

• Gain:30db-105db

• Dynamic Range:40/50/60/70/80/90/100/110

• Noise reduction:0-1-2-3-4

• Image gray scale:256 level

• Image/Video Storage:Store on mobile phones,Tablet PC

• Measure:distance,area,obstetrics and other;

• Power:by built-in lithium battery,2800mAh

• Battery working time:2.5hours

• Size/Net Weight::156mm×60mm×20mm,250g
