Product Advantage

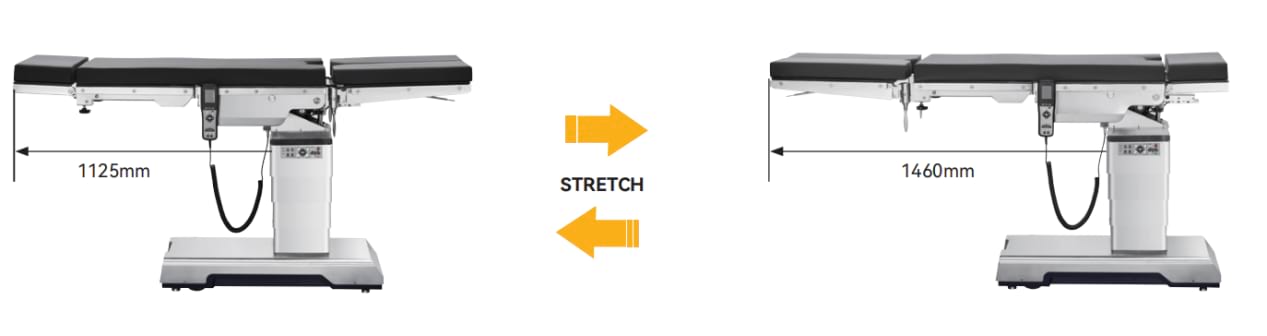

Longitudinal slide up to 350mm for free access to C arm.
Standard override panel control makes the control safer.
Extreme weight load capacity of 300kgs with highest safety and stability.
"EASY CLICK" leg plate control by electro-hydraulic and manual. Optional "PLUG IN" type leg plate can In terchangable with head plate.
Memory pad with antistatic, waterproof design.
Battery power for 50-80 operations.

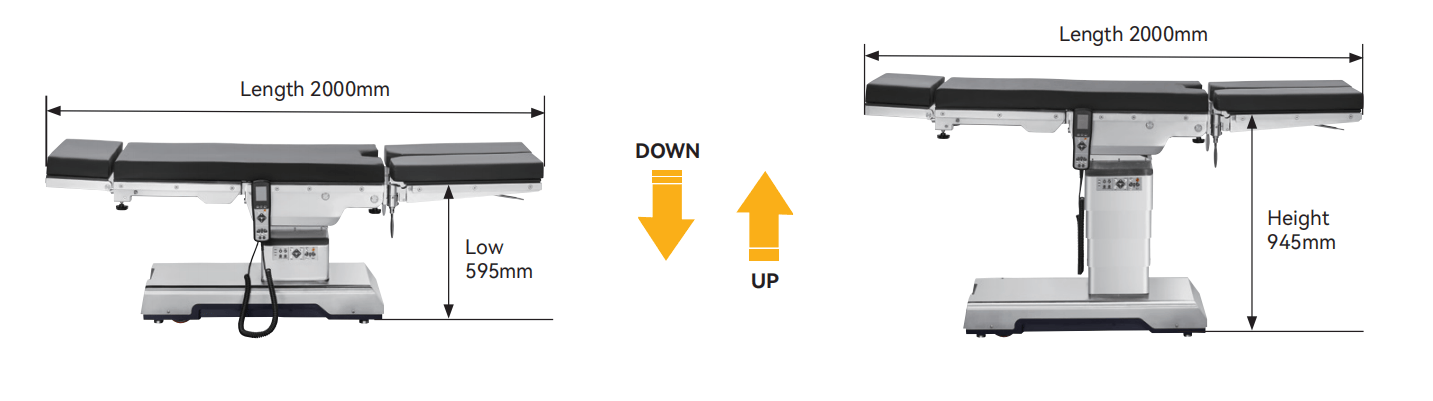

Optional Version Height Adjustment
Perspective Range
Lifting And Moving Function

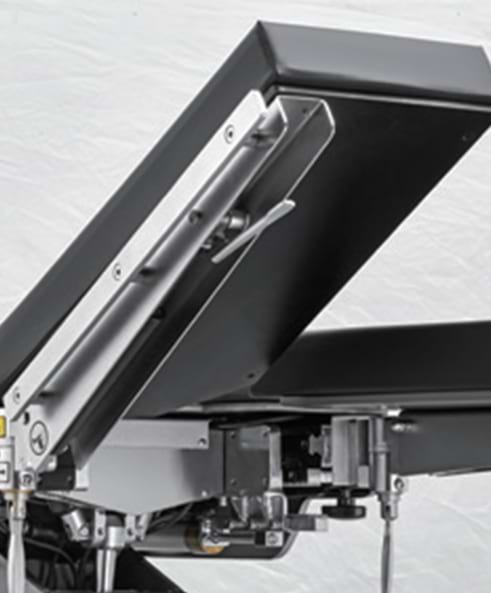

Leg plate: lmported gas spring for easy controls.

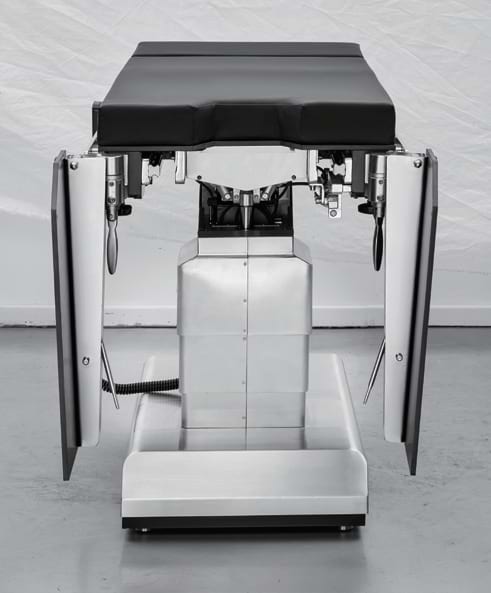

Leg Plate outward 90°.

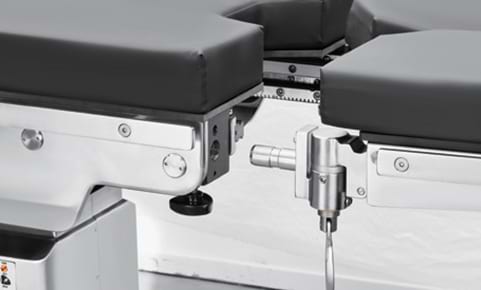

Optional “PLUG IN”Leg plate for simple and quick modle changes.

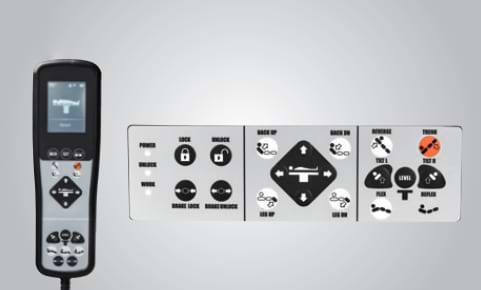

Double control system
Models | Length | Width | Tabletop Lowest Height | Elevation Range |
ET600 | ≥2160mm | 550mm | ≤690mm | ≥400mm |
ET600
Tabletop trendelenburg | Reverse Trendelenburg | ≥30° |
Trendelenburg | ≥30° | |
Laterail tilt(Left and Right) | ≥20° | |
Head plate | UP | ≥60° |
Down | ≥90° | |
Back plate | UP | ≥90° |
Down | ≥40° | |
Leg plate | UP | ≥30° |
Down | ≥90° | |
Outward | ≥90° | |
Kidney bridge elevation | 110mm | |
Horizontal sliding | ≥350mm | |
Flex | ≤90° | |
Reflex | ≥220° | |
