System functions
Wireless connection: The simulator and the display adopt wireless connection, which can work for more than 10 hours without power supply.
Contrast between normal and dilated pupils on both sides: Simulate pupil status, normal and dilated, the simulated person will change simultaneously.
Carotid artery pulsation: control the simulated arterial pulsation, the pulsation is weak, the pulsation is strong.
CPR cardiopulmonary resuscitation:
1) Designed according to the 2015 International Cardiopulmonary Resuscitation Guidelines Standards, artificial respiration and chest compressions can be performed. Operation method: single or multi-person training and assessment, full Chinese language prompts. Standard airway opening, real-time data graphic display, voice prompts for correct and wrong operations, statistical data printing results, automatic scoring system.
2) Simulate normal breathing sounds of a real human body.
Airway management:
1) Standard oral and nasal airway intubation supports alarms when the head is raised, the lower jaw is raised, and the teeth are stressed. The correct and wrong operations are displayed electronically and intuitively.
2) The airway status can be manually controlled, such as: blocking the left lung, blocking the right lung, blocking both lungs at the same time, and opening both lungs.
Operation training of lateral thigh muscle injection:
1) Really inject drugs.
2) The module can be taken out to squeeze out the injected medicine.
3) The same part can withstand hundreds of punctures.
4) The module can be replaced.
Arm intravenous injection operation training:
1) The vein distribution is the same as the real human body.
2) There is an obvious sense of miss when the needle is inserted, and simulated blood can be added to produce blood return.
3) The same puncture site of veins and skin can withstand hundreds of puncture leakages.
4) The skin and blood vessels can be replaced.
The simulated human ankle joint can be rotated left and right: it is basically the same size as the real human body, and can be used for foot care operations.
The simulator can exchange male and female external genitals, and can be used for catheterization training: the simulated human body has a simulated bladder, which can be injected into the simulated urine, and the simulated urine will flow out after the operation is successful.
Analog defibrillator
AED training machine" presets 10 kinds of training mode programs, each mode is to simulate the real AED scene, these modes are in line with the international. The latest training standards.
Follow the 10 AED training scenarios specified in the latest international first aid guidelines.
It is fully in line with the real AED machine operation interface, with an on-off key and a defibrillation key.
The LED digital tube displays the training scene mode being demonstrated.
It can cooperate with a simulated human to demonstrate, intelligently detect whether the electrodes are properly attached.
Split program card design, easy to replace the guide.
With pause playback function, the volume can be adjusted.
In order to meet the mathematical needs of the playback function, the volume can be adjusted. basic configuration:

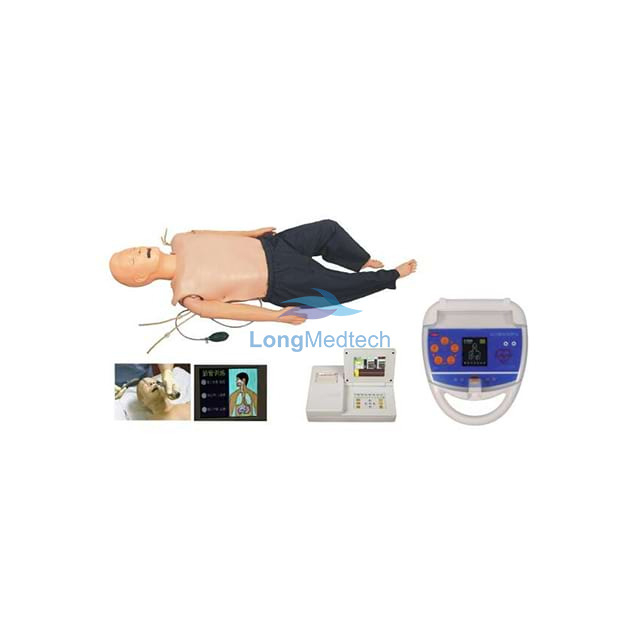

1) ALS Standard Simulator
2) ALS computer monitor
3) Anesthesia laryngoscopy
4) Breathing air bag
5) AED analog defibrillator
