Gemini 09

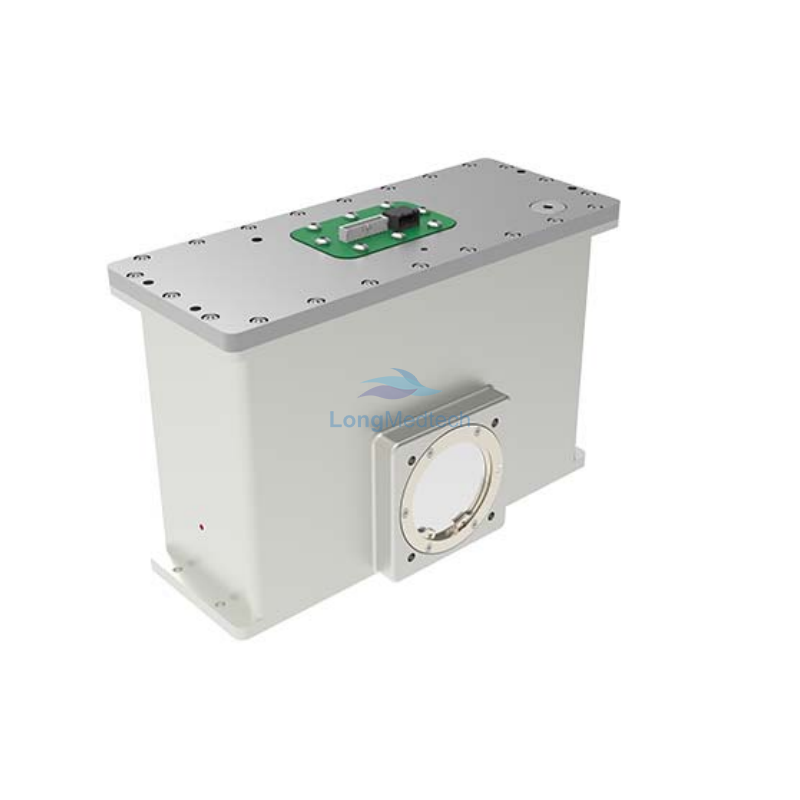

Gemini 09 is 1000W X-ray solution designed primarily for a variety of dental applications. In addition to providing continuous X-ray for fluoroscopy and fixed pulse-width exposures for radiography, it supports up to 30 fps X-ray pulses for easy integration with a flat panel detector. The compact package has the X-ray tube, and all high voltage components, integrated within the oil tank. An RS232 serial communication interface with a simple pro-tocol is available for easy integration and system design.
Features
Compact solution with a fixed anode tube
Oil tank integrating X-ray tube and high voltage components
High frequency inverter
Pulsed and continuous exposure mode
RS232 serial communication interface
Ideally suited for integration with flat panel X-ray detectors
Technical Parameters
| Gemini 09 | |||
| Basic | |||
| Output Power | 1000 W Peak | ||
| Tube Voltage Range (kV) | 50-100 | ||
| Tube Current Range (mA) | 1-10 | ||
| Mechanical | |||
| Tank Dimension (mm3) | 262 × 108 × 186 | ||
| Tank Weight (kg) | 7.9 | ||
| Inverter Dimension (mm3) | 220 × 151 × 71 | ||
| Inverter Weight (kg) | 1.6 | ||
| Power Board Dimension (mm3) | 220 × 110 × 54 | ||
| Power Board Weight (kg) | 1.0 | ||
| Electrical | |||
| Tube Voltage Ripple | ＜1% (RMS) | ||
| Tube Voltage Accuracy | ± 5% | ||
| Tube Voltage Rising Time (ms) | 1 | ||
| Tube Current Accuracy | ± 5% | ||
| Power Supply | |||
| Mains Input | 220 VAC / 50-60 Hz 110 VAC optional | ||
| X Ray Tube | |||
| Focal Spot Size | 0.5 | ||
| Anode Target Angle | 5° | ||
| Total Equivalent Filter | 2.5 mm Al | ||
| Operational | |||
| Interface | RS232 | ||
| Software | GUI service tool | ||
| Operating Mode | Continuous Exposure Mode Pulse Exposure Mode Service Mode | ||
| Thermal | |||
| Max. Tank Heat Storage | 300 kHU / 222 kJ | ||
| Tank Heat Dissipation (W) MAX. | 75 | ||
| Environmental | |||
| Operating Temperature (℃) | 0-40 | ||
| Storage & Transportation Temperature (℃) | -20-70 | ||
| Operating Humidity(Non-condensing) | 5-95 | ||
| Storage & Transportation Humidity (Non-condensing) | 5-95 | ||
