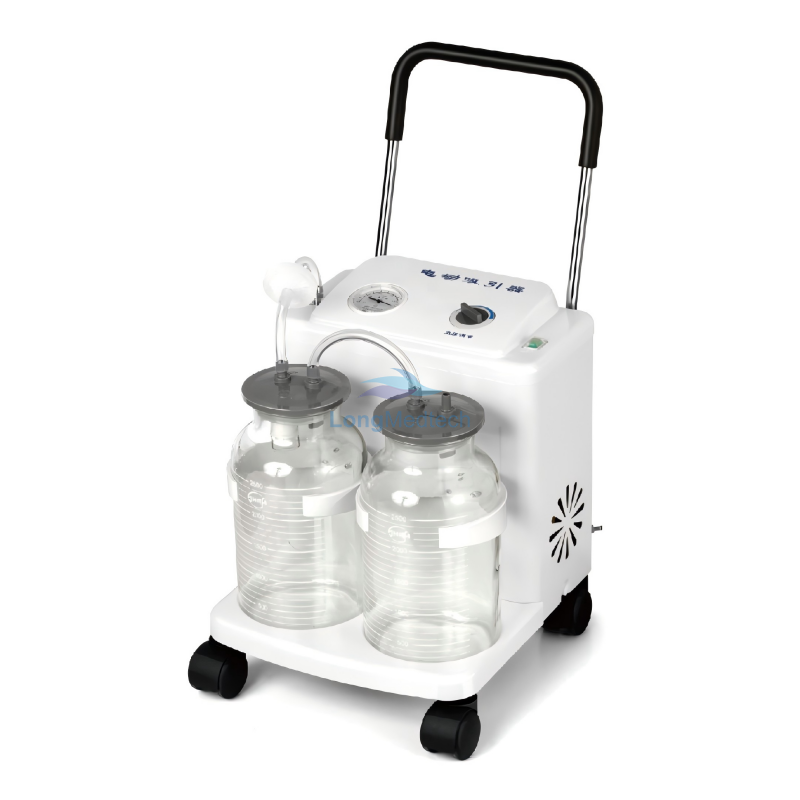

LSF-3 Electric Suction Apparatus

Product overview

1. An oil-less vacuum pump, double piston cylinder with a high flow,high vacuum, needs maintenance free.

2. Move smoothly and freely with a swing-type pull handle; the acc-essory-case for placing foot-switch and power supply wire makesit convenient for movement or storage.

3. Large-bore and large capacity bottles with stopper having sealingring, easy to clean and to open or close.

4. The overflow protection device is intended to prevent liquid or so-lid particles from entering the intermediate tubing and pump.

5. Transparent non-toxic PVC hoses and unique connections are ea-sy to observe and link.

6. The level of vacuum required in clinic can be controlled by adjustin-g the regulator knob, and a synchronized indication on the vacuummeter

7. Stability and durability, low noise, safe and reliable to operate.

Specification parameter

1. Max vacuum: >0.09MPa (680mmHg)

2. Adjustable vacuum range: 0.02MPa~0.09MPa(150~680mmHg)

3. Flow rate: >32L/Min

4. Noise: ≤60dB (A)

5. Storage bottles: 2500mLx2(glass) (the two or one of them can be changed to 2L PC bottle)

6. Power supply: AC220V 50Hz

7.Input: 150VA

8. Dimension: 370mmx310mmx390mm

9.Package Dimension:400mmx380mmx480mm

10.G.W./N.W.: 14.5kg/12kg
