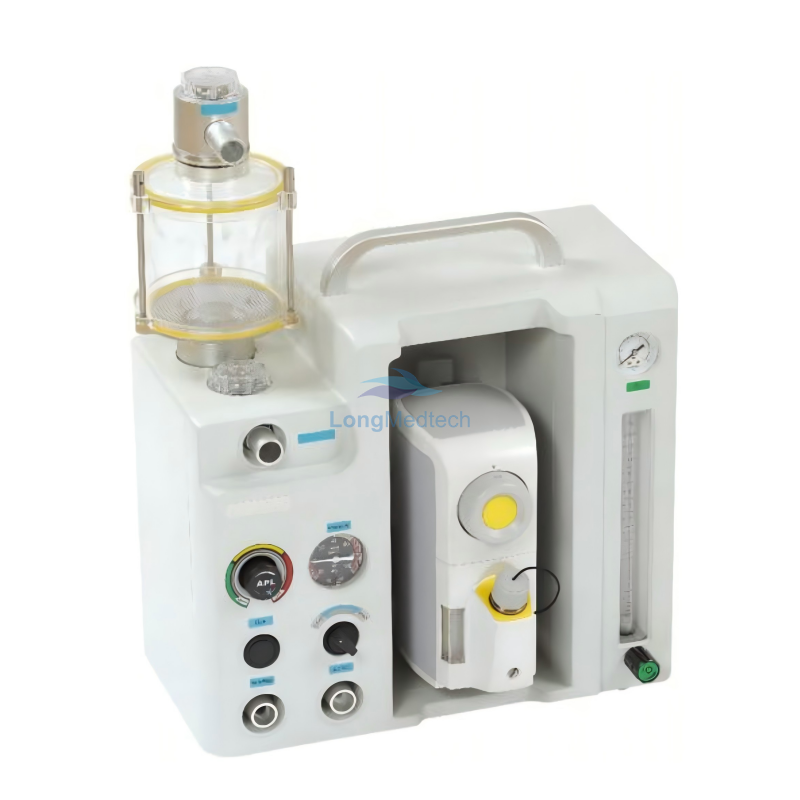

LVP-600A Anesthesia Workstation

SPECIFICATIONS

Physical and Environmental Specification

• Dimension 440(W)*230(D)*540(H) mm

• weight: 15Kg

• Storage temperature: -22 C~+55 C

• Working temperature: +10 C~+40 C

• Storage humilidity: ≤93 C

Vaporizer

• Agent type: Sevoflurane; Halothane; Isoflurane

• Flow range: 0.2~15L/min

  Concentration: 0~5.0% (Sevoflurane 0-8%)

• Work temperature:15~35 C

Main unit

Mode: Semi-open, semi-closed or closed system

• Gas supply: O2 0.28Mpa~0.6Mpa

• Flow meter: O2 one-tube flowmeter, 0 to10 L/min O2 Flush: 25 to 75 L/min

• O2 deficiency alarm: Audible alarm for at

least 7 seconds

• APL valve: ≤6KPа

• CGO/ACGO
