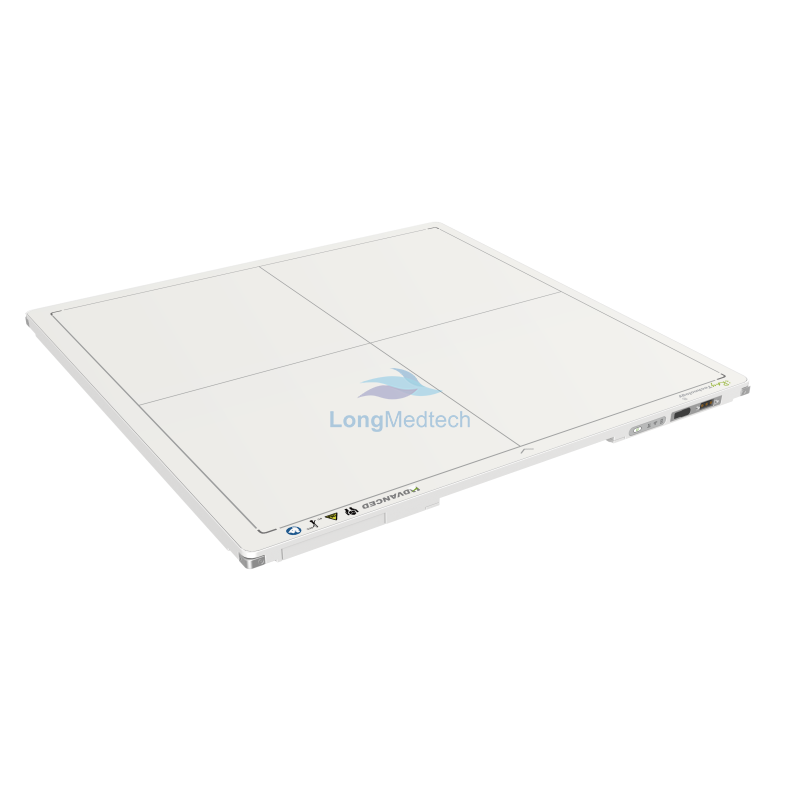

Mercu 1717VN
Mercu 1717VN is an a-Si FPD designed for real-time imaging. The 17×17-inch image sensor has direct deposition Csl, which provides excellent low-dose imaging at frame rates up to 30fps. It is a combination of dynamic and wireless detector with 139μm pixel pitch design, which provides more solution for DRF products.
Features
Technical Parameters
| Mercu 1717VN | |||
| Detector Technology | Amorphous Silicon | Data Interface | GigE |
| Scintillator | CsI | Operating Temperature (℃) | 10~35 |
| Active Area (inch) | 17 × 17 | Operating Humidity (% RH) | 20~90 (Non-Condensing) |
| Pixel Matrix | 3072 × 3072 | Storage & Transport Temperature with Package (℃) | -10~55 |
| Pixel Pitch (μm) | 139 | Storage & Transport Humidity with Package (% RH) | 10~90 (Non-Condensing) |
| Spatial Resolution (lp/mm) | 3.6 | Dimensions (mm) | 460 × 460 × 15 |
| AD Conversion (bit) | 16 | Weight (kg) | 4.6 |
| Frame Rate (fps) | 5 (1×1) 20 (2×2) 30 (3×3) | ||
