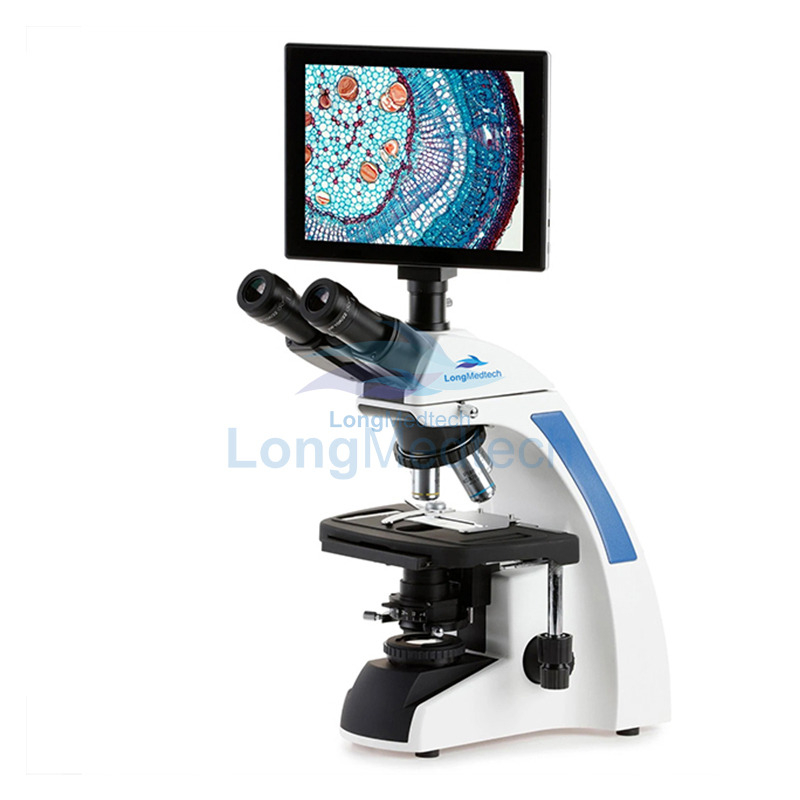

LKP-100 Biological Microscope

40X-1000X Plan Infinity Laboratory Trinocular Compound Microscope with 9.7"Touchscreen Imaging System

SKU:LKP-100

Key Features

40X to 1000X magnification range for studying a range of specimens including hairfollicles, cells, and bacteria.

Includes a 9.7" touchscreen tablet with 5MP integrated camera for monitoring andcapturing images. Equipped with microSD, USB and wi-fi for storing and sharing files, andmicro-HDMI to use larger displays including televisions and monitors.The infinity-corrected optical system reduces distortion and improves color accuracy.Plan-achromatic lenses produce high-contrast images with edge-to-edge sharpness.The Koehler illumination system provides centered, evenly-distributed lighting with afield aperture for maximum contrast and definition.Rackless mechanical stage provides extremely smooth movement over a wide range.

The LKP-100 is a feature-rich microscope with a turnkey 9.7" touchscreen tablet-based imagingsystem. Designed for professional biological applications and advanced education, themicroscope offers high-end features. Its infinity-corrected optical system ensures reliable,low-distortion magnification, with plan-achromatic corrections for accurate colors, excellent fieldflatness and edge-to-edge sharpness. The Koehler-design LED illumination system provides bright,

evenly-distributed light for maximum contrast and definition. This model is a popular choice forveterinarians and university laboratories.

The trinocular head accommodates simultaneous viewing through both eyepieces and thetop-mounted photo port which accommodates a wide range of imaging systems. The binocularviewing tubes use Siedentopf adjustment to easily fit any user. Focusable eyepieces are used tocompensate for users with astigmatism or asymmetrical sight.

The objective turret provides instant access to 4 magnification levels to easily focus in on minutedetails from 40X to 1000x. This covers magnifications needed for studying hair follicles, cells, soil,and bacteria. The turret's reversed orientation provides more working room above the stage.These high-quality lenses are achromatically corrected to improve resolution and color accuracy,with planatic flat-field correction to provide edge-to-edge sharpness.

The large 2-layer mechanical stage provides smooth and precise movement for examination ofspecimen slides. The rackless design provides a wide range of movement without the obtrusive,exposed teeth of conventional mechanical stages. The stage's low-position controls areconveniently placed near the coaxial focus knobs for a streamlined workflow. Examiningspecimen slides is intuitive and precise for users at any skill level.

Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed lightfor optimal contrast. The LED light-source ensures cool, energy-efficient illumination with lowheat for live specimens. The bright light-source is daylight-balanced to produce natural colors forimaging. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and aniris diaphragm to optimize contrast and depth-of-field. The condenser holder usesrack-and-pinion height adjustment for precision control, and is centerable for proper alignment.The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrastand definition in specimen features.
