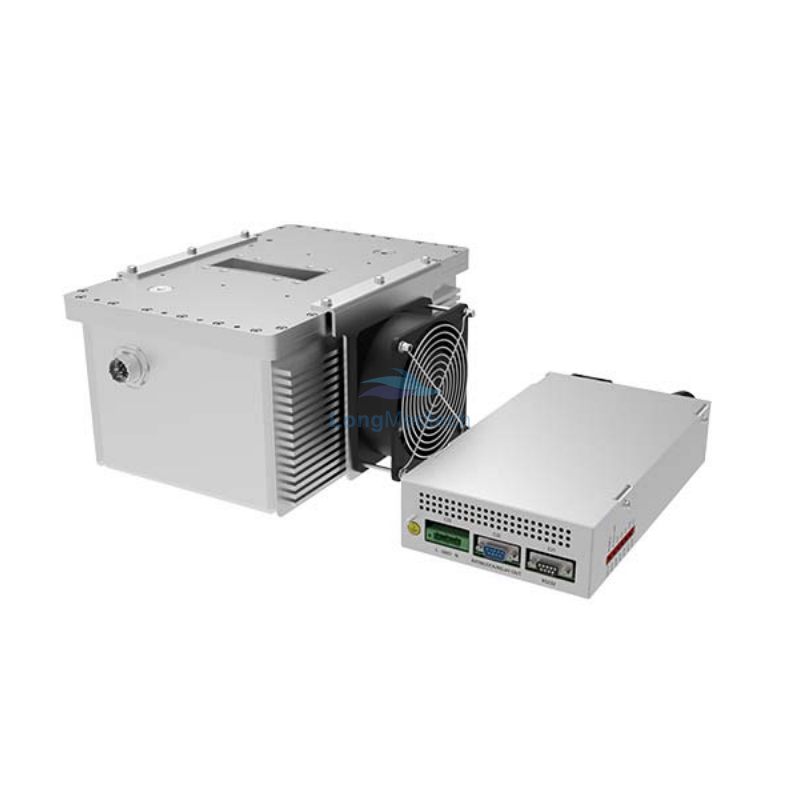

Gemini 0150F10
Gemini0150F10 is an X-ray source subsystem primarily for food inspection system applications. It consists of a high voltage tank with a fixed anode X-ray tube and high voltage electronics integrated. Power factor corrected circuitry provides excellent dose rate control stability and universal input. Cone beam design is ideally suited for integration with line sensor detector.
Features
Compact solution with a fixed anode tube
Oil tank integrating X-ray tube, high voltage components and radiation shielding
High frequency inverter with Power Factor Corrected circuitry inside
Fan beam and continuous exposure mode all day long
User friendly RS232 serial communication interface
Technical Parameters
| Gemini 0150F10 | |||
| Basic | |||
| Output Power | 150 W | ||
| Tube Voltage Range (kV) | 25-100 | ||
| Tube Current Range (mA) | 0.05-6 | ||
| Mechanical | |||
| Tank Dimension (mm) | 308 × 205 × 150 | ||
| Tank Weight (kg) | 17.2 | ||
| Inverter Dimension (mm) | 301 × 152 × 55 | ||
| Inverter Weight (kg) | 1.5 | ||
| Electrical | |||
| Tube Voltage Ripple | ＜0.5% (RMS) | ||
| Tube Voltage Accuracy | ± 1% | ||
| Tube Voltage Rising Time (ms) | 500 | ||
| Tube Current Accuracy | ± 1% | ||
| Power Supply | |||
| Mains Input | 1Φ, 90~264VAC / 50-60 Hz | ||
| Cooling Fan Input | 1Φ,220VAC or 110VAC/50-60Hz | ||
| X Ray Tube / Tank | |||
| Focal Spot Size (mm) | 0.5 | ||
| Beam Geometry | 80° × 20° Fan | ||
| Operational | |||
| Interface | RS232 | ||
| Software | GUI service tool | ||
| Operating Mode | Continuous Exposure Mode | ||
| Thermal | |||
| Max. Tank Heat Storage | 450 kHU / 338 kJ | ||
| Tank Heat Dissipation (W) | 150 | ||
| Environmental | |||
| Operating Temperature (℃) | 0-40 | ||
| Storage & Transportation Temperature (℃) | -20-70 | ||
| Altitude | 0 to 4000m | ||
| Operating Humidity(Non-condensing) | 5-95 | ||
| Storage & Transportation Humidity (Non-condensing) | 5-95 | ||
