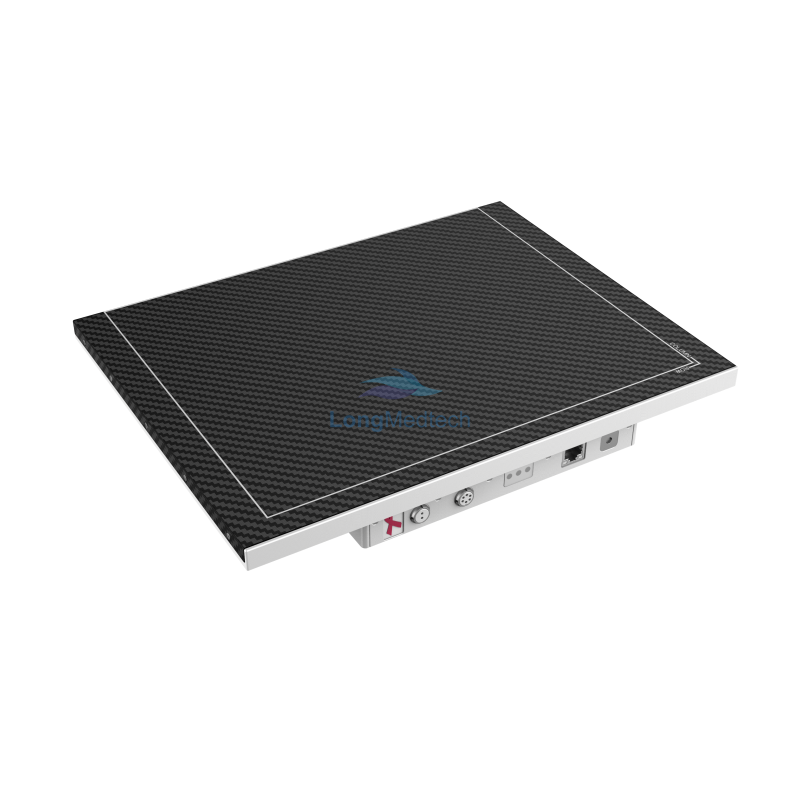

Mammo 1012X 10×12-inch Mammographic Flat Panel Detector

        Mammo 1012X is new generation, high-performance 10×12-inch dynamic a-Si FPD. It has a large imaging area, a narrow chest wall distance, high dynamic range, high signal-to-noise ratio, and switchable gain settings for variable sensitivity. It supports dynamic imaging up to 6 fps at full resolution, and is designed for full field (FFDM), digital breast tomosynthesis (DBT), and biopsy mammography applications.

Features

• 238mm × 293mm imaging area

• 85 μm pixel pitch with 16-bit ADC

• Low 1st frame lag of 1.5%

• Wide dynamic range

• High signal-to-noise ratio, excellent quality

• 6 fps at continuous mode

• Switchable gain settings for variable sensitivity

• Compact design for easy integration

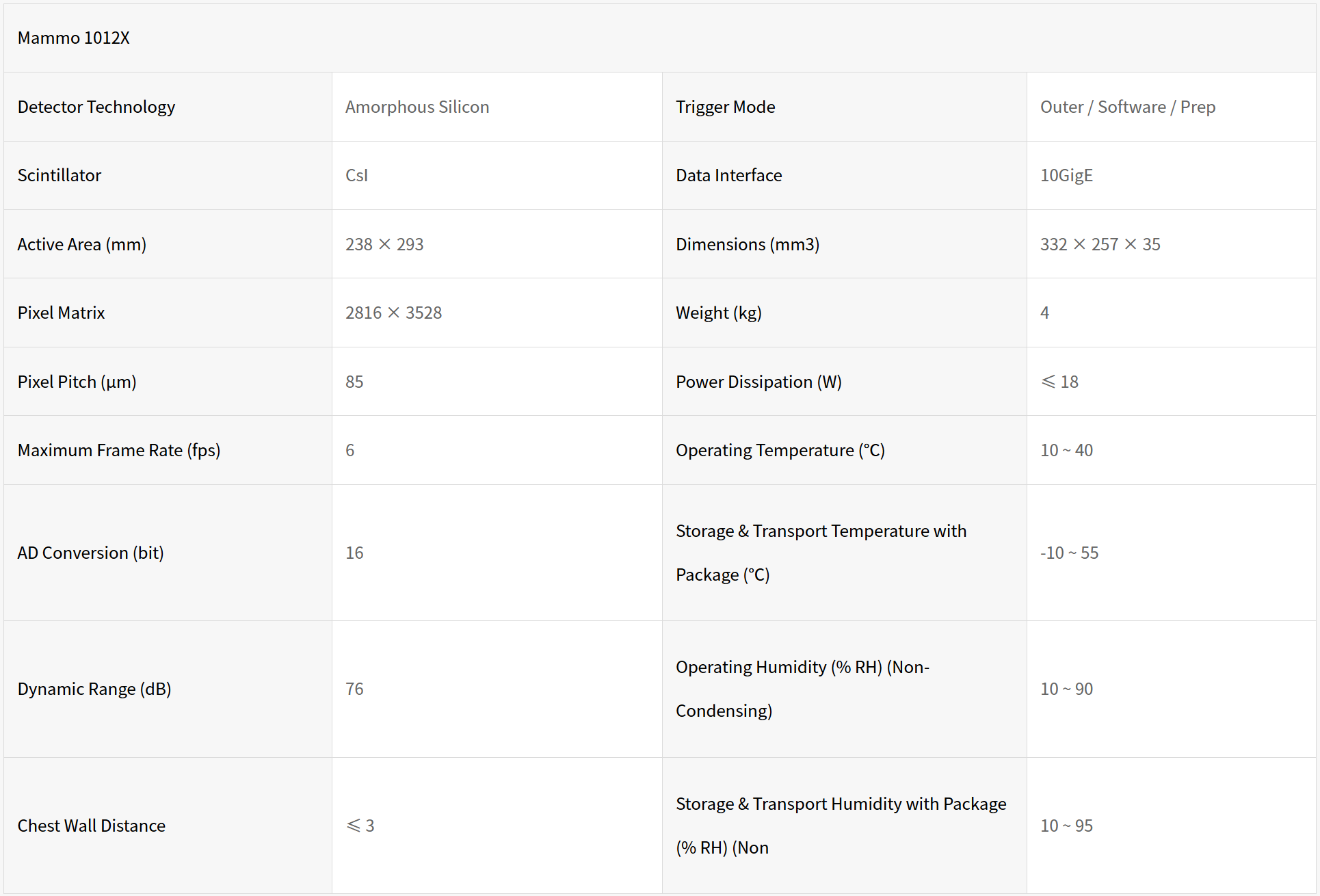

Technical Parameters
